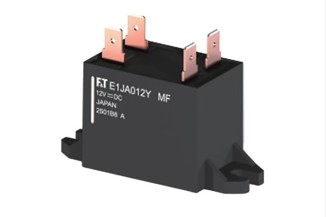

FCL Components printrelays series FTR-E1J

These printrelays with 20A/800V DC have a high voltage Dc load switch, and a non polar contact, which can be switched on and off for loading-/unloading cycle. They are made of sealed plastic, and have a lo...

FCL Components printrelays series FTR-E1J

These printrelays with 20A/800V DC have a high voltage Dc load switch, and a non polar contact, which can be switched on and off for loading-/unloading cycle. They are made of sealed plastic, and have a low power consumption (0.9W at coil rated voltage). We offer the following types of this FCL Components series: FTR-E1JA012Y-MF and FTR-E1JA024Y-MF.

  • contact: SPST-NO
  • nominal switching current: 20A
  • nominal switching voltage: 800V DC
  • operating temperature: -40 to +85°C
  • housing: 28,3x43,6x36,1mm
  • weight: 85g
