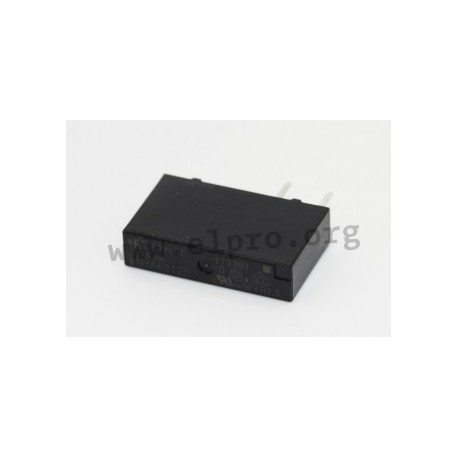

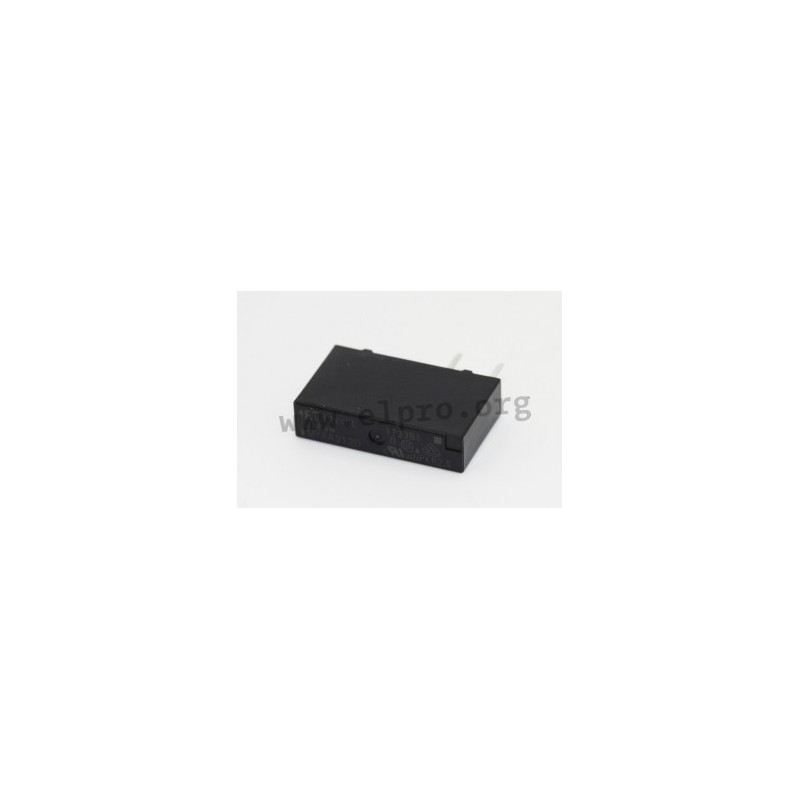

FTR-MYAA018D-B

FCL Components PCB relays series FTR-MY

This slim type with 5mm width is characterized by a high switching current (5A). Their contacts are gold overlay (AgNi) and cadmium free. These relays have a wash tight construction which conforms to RTIII. We are offering various types of this FCL Components series.

  • contact: SPST-NO
  • contact material: gold overlay AgNi
  • rated switching current: 5A
  • max. switching voltage: 277V AC / 125V DC
  • max. switching power: 1250VA / 150W
  • creepage/clearance: 10/5ms
  • operating temperature: -40 to +90°C
  • weight approx.: 2.5g
  • FTR-MY_D-B: ATEX complient
FTR-MYAA018D-B, FCL Components PCB relays, 8A, 1 normally open contact, FTR-MY series

FTR-MYAA018D-B

256480 FTR-MYAA018D-B FTR-MYAA018D-B FCL Components PCB relays series FTR-MY. This slim type with 5mm width is characterized by a high switching current (5A). Their contacts are gold overlay (AgNi) and cadmium free. These relays have a wash tight construction which conforms to RTIII. We are offering various types of this FCL Components series. contact: SPST-NO contact material: gold overlay AgNi rated switching current: 5A max. switching voltage: 277V AC / 125V DC max. switching power: 1250VA / 150W creepage/clearance: 10/5ms operating temperature: -40 to +90°C weight approx.: 2.5g FTR-MY_D-B: ATEX complient

Specifications

manufacturer
Manufacturer's name FTR-MYAA018D-B
Nominal voltage [V DC] 18
Coil resistance [Ω] 2950
Response voltage [V] 12,6
Release voltage [V] 0,9
Nominal capacity [mW] 110
Data Sheet

Unit price

1,17 €

Stock: 0
Further delivery:
CW 37/2026

Minimum order quantity 3.000 units or
multiples of 3.000.
