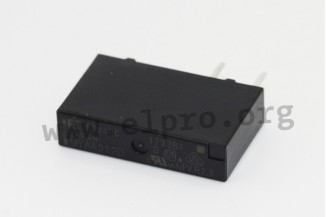

FCL Components PCB relays series FTR-MY

This slim type with 5mm width is characterized by a high switching current (5A). Their contacts are gold overlay (AgNi) and cadmium free. These relays have a wash tight construction which conforms to RTIII. ...

FCL Components PCB relays series FTR-MY

This slim type with 5mm width is characterized by a high switching current (5A). Their contacts are gold overlay (AgNi) and cadmium free. These relays have a wash tight construction which conforms to RTIII. We are offering various types of this FCL Components series.

  • contact: SPST-NO
  • contact material: gold overlay AgNi
  • rated switching current: 5A
  • max. switching voltage: 277V AC / 125V DC
  • max. switching power: 1250VA / 150W
  • creepage/clearance: 10/5ms
  • operating temperature: -40 to +90°C
  • weight approx.: 2.5g
  • FTR-MY_D-B: ATEX complient
