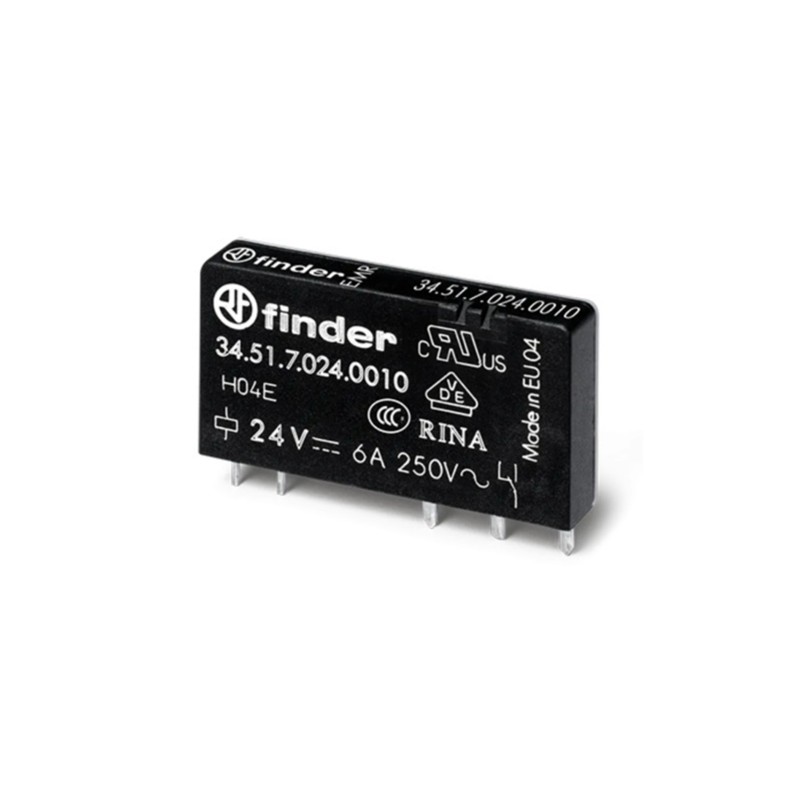

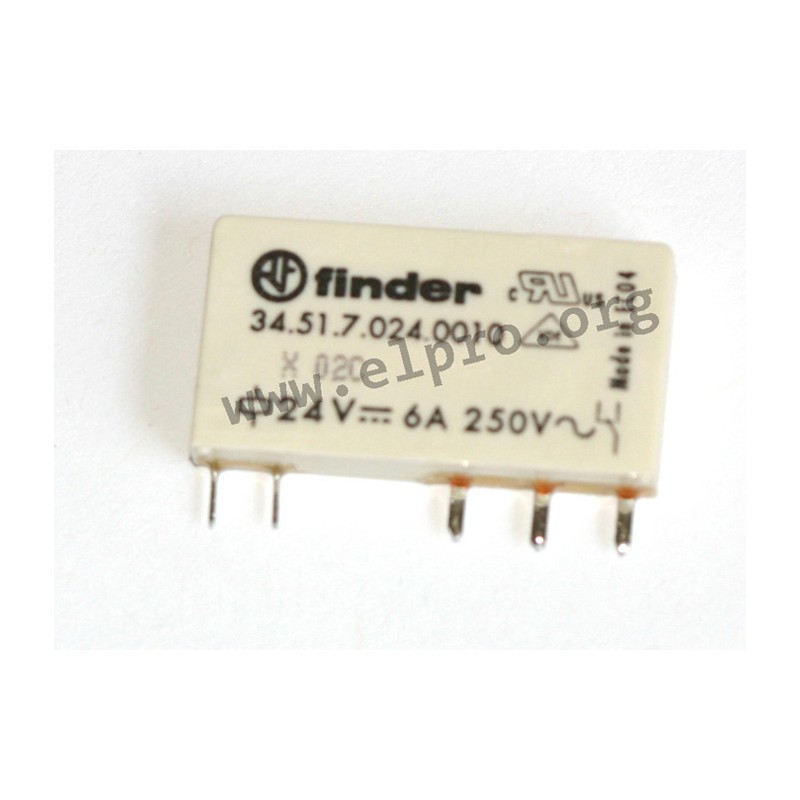

34.51.7.005.0010

Finder PCB relays series 43

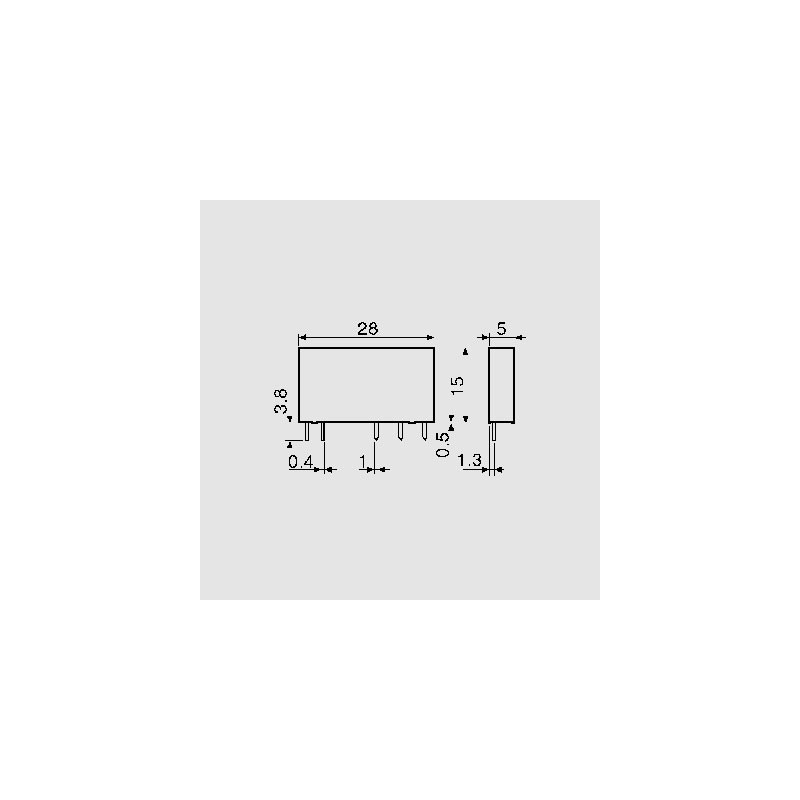

Ultra-slim (5mm) PCB relays with a high-density mounting due to low dimensions, and a low power consumption. These relays have a high dielectric strength, low coil consumption, protective separation according to EN50178, EN60204 to contact and coil. They have DC drive, conform with protection class II to VDE0631 / EN60730. We offer various types of this Finder series.

  • contact material: AgNi (34.51_), resp. AgNi+Au (5µm) (34.51_gold)
  • rated current: 6A
  • max. switching current: 10A
  • rated voltage: 250V AC
  • max. switching voltage: 400V AC
  • operating temperature: -40 to +85°C

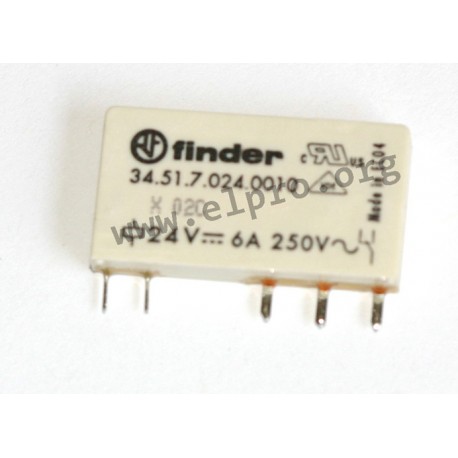

Finder series 34

34.51.7.005.0010

253442 34.51.7.005.0010 34.51.7.005.0010 Finder PCB relays series 43. Ultra-slim (5mm) PCB relays with a high-density mounting due to low dimensions, and a low power consumption. These relays have a high dielectric strength, low coil consumption, protective separation according to EN50178, EN60204 to contact and coil. They have DC drive, conform with protection class II to VDE0631 / EN60730. We offer various types of this Finder series. contact material: AgNi (34.51_), resp. AgNi+Au (5µm) (34.51_gold) rated current: 6A max. switching current: 10A rated voltage: 250V AC max. switching voltage: 400V AC operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 34.51.7.005.0010
Rated current [mA] 38,4
Nominal voltage [V] 5
Switching current [A] 10
Response voltage [V] 3,5
Max. switching voltage [V] 250V DC
Max. starting current [A] 10

Unit price

6,79 €

Stock: 20
Further delivery:
CW 07/2026

Minimum order quantity 5 units or
multiples of 5.
