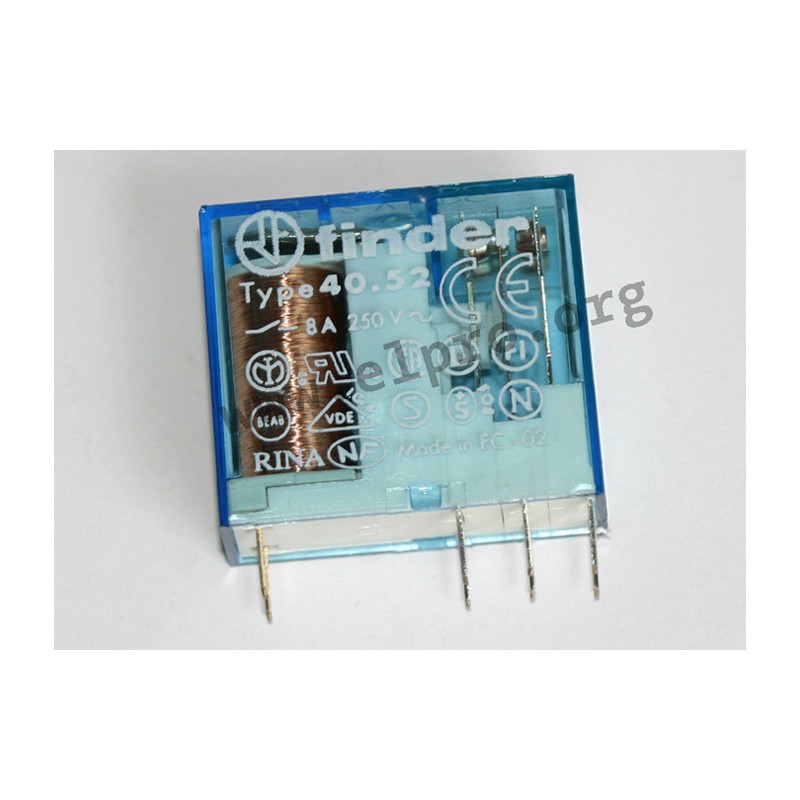

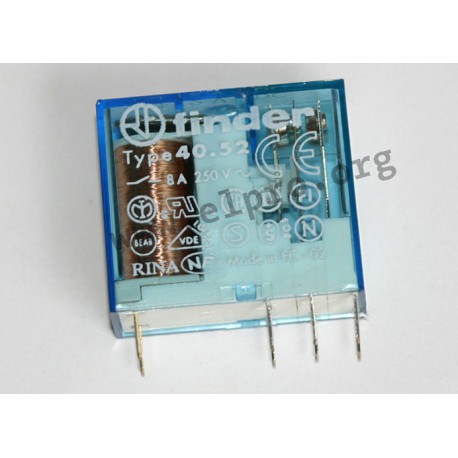

40.52 230V AC

Finder PCB relays series 40

Flux protected (260°C, 5s) PCB relays available in versions with DC or AC coil. These relays conform with relay protection class RTII. We offer various types of this Finder series.

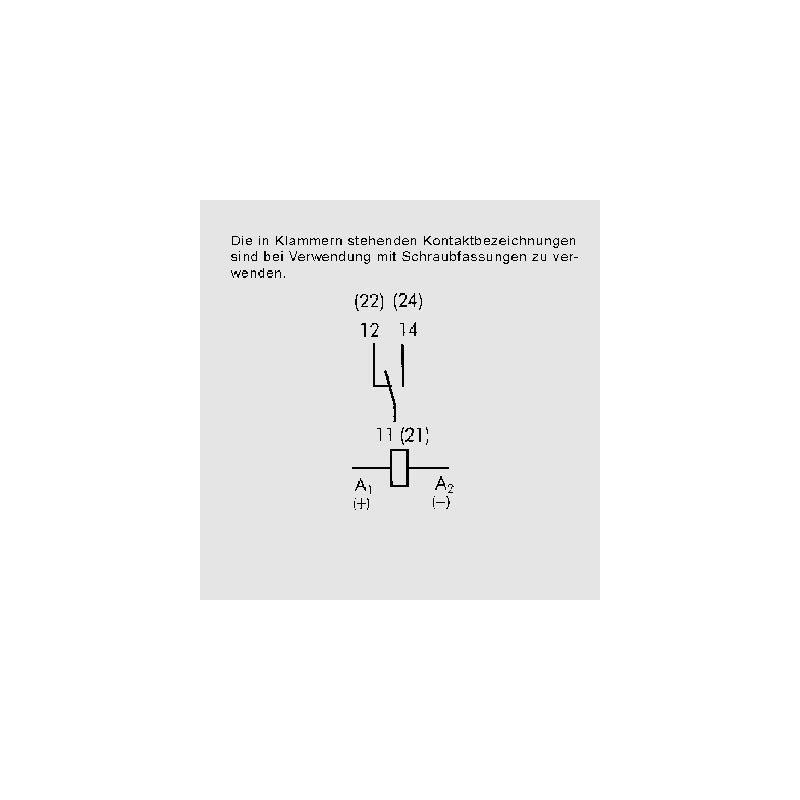

  • contact: SPDT (Double Contact)
  • contact material: AgNi (40.52_), resp. AgNi + Au (5µm) (40.52_G)
  • rated current: 8A
  • max. switching current: 15A
  • max. switching voltage: 400V AC
  • max. switching power: 2000VA
  • operating temperature: -40 to +85°C
Finder 40.52 series

40.52 230V AC

11877 40.52 230V AC 40.52.8.230.0000 40.52.8.230.0000 Finder PCB relays series 40. Flux protected (260°C, 5s) PCB relays available in versions with DC or AC coil. These relays conform with relay protection class RTII. We offer various types of this Finder series. contact: SPDT (Double Contact) contact material: AgNi (40.52_), resp. AgNi + Au (5µm) (40.52_G) rated current: 8A max. switching current: 15A max. switching voltage: 400V AC max. switching power: 2000VA operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 40.52.8.230.0000
Rated current [mA] 5
Switching current [A] 2x8
Nominal resistance [Ω] 28000
Response voltage [V] 184...253
Max. switching voltage [V] 250
Max. switching power [VA] 2000

Unit price

8,99 €

Stock: 176
Next incoming goods:
CW 06/2026
50 units

Further delivery:
CW 07/2026

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
