40.52.9.024.5000

Finder PCB relays series 40

Flux protected (260°C, 5s) PCB relays available in versions with DC or AC coil. These relays conform with relay protection class RTII. We offer various types of this Finder series.

  • contact: SPDT (Double Contact)
  • contact material: AgNi (40.52_), resp. AgNi + Au (5µm) (40.52_G)
  • rated current: 8A
  • max. switching current: 15A
  • max. switching voltage: 400V AC
  • max. switching power: 2000VA
  • operating temperature: -40 to +85°C

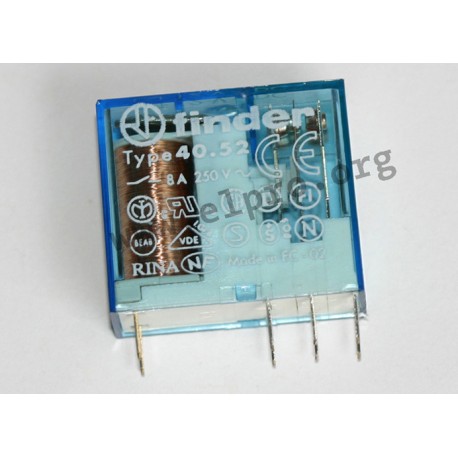

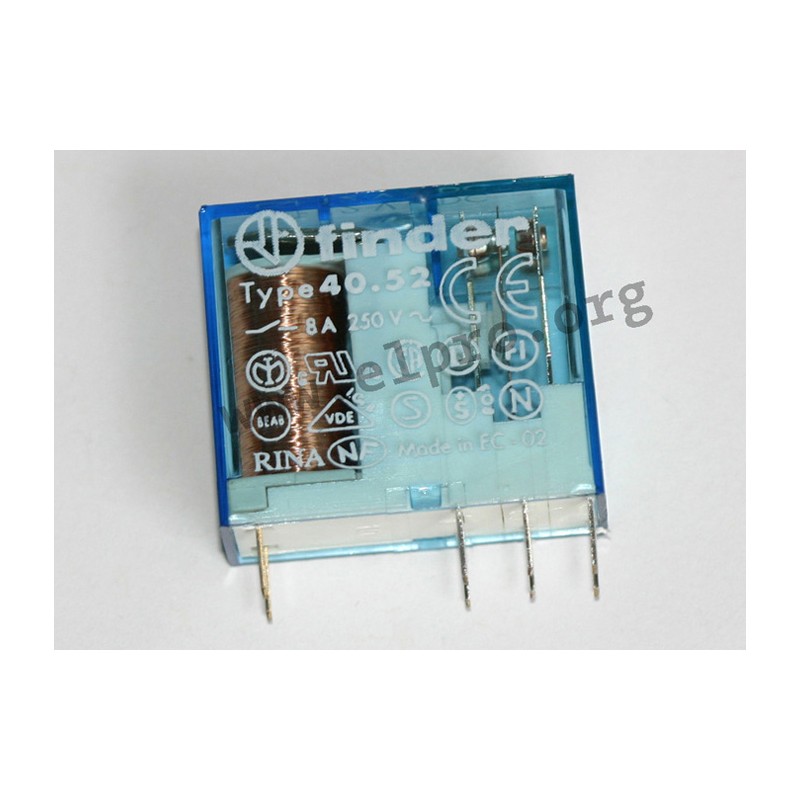

Finder 40.52 series

40.52.9.024.5000

253462 40.52.9.024.5000 40.52.9.024.5000 Finder PCB relays series 40. Flux protected (260°C, 5s) PCB relays available in versions with DC or AC coil. These relays conform with relay protection class RTII. We offer various types of this Finder series. contact: SPDT (Double Contact) contact material: AgNi (40.52_), resp. AgNi + Au (5µm) (40.52_G) rated current: 8A max. switching current: 15A max. switching voltage: 400V AC max. switching power: 2000VA operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 40.52.9.024.5000
Rated current [mA] 27
Switching current [A] 2x8
Nominal resistance [Ω] 900
Response voltage [V] 17,5
Max. switching voltage [V] 400

Unit price

7,49 €

Stock: 50
Further delivery:
CW 07/2026

Minimum order quantity 5 units or
multiples of 5.
