> Passive elements>Relays>Electromechanical relays>Finder PCB relays, 16A, 1 changeover contact, 40.61 series>40.61.7.005.4000

Manufacturers

40.61.7.005.4000

Finder PCB relays series 40.61

Flux protected (260°C, 5s) PCB relays available in versions with DC or AC coil. These relays conform with relay protection class RTII. We offer various types of this Finder series.

  • contact: SPDT (Double Contact)
  • contact material: AgCdO (40.61_), resp. AgSnO2 (40.61_A)
  • rated current: 16A
  • max. switching current: 30A
  • max. switching voltage: 400V AC
  • max. switching power (AC/DC): 750/4000VA
  • mechanical (AC/DC): 10x106/20x106 operations
  • electrical: 10x104 operations
  • operating temperature: -40 to +85°C

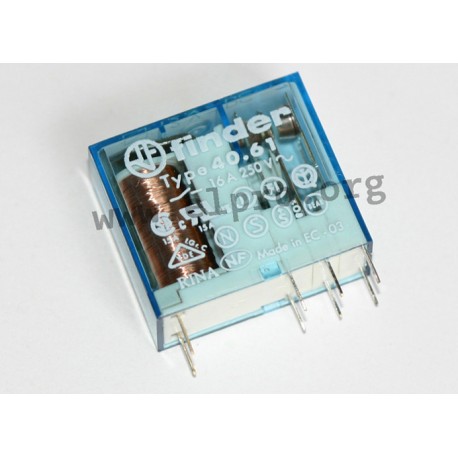

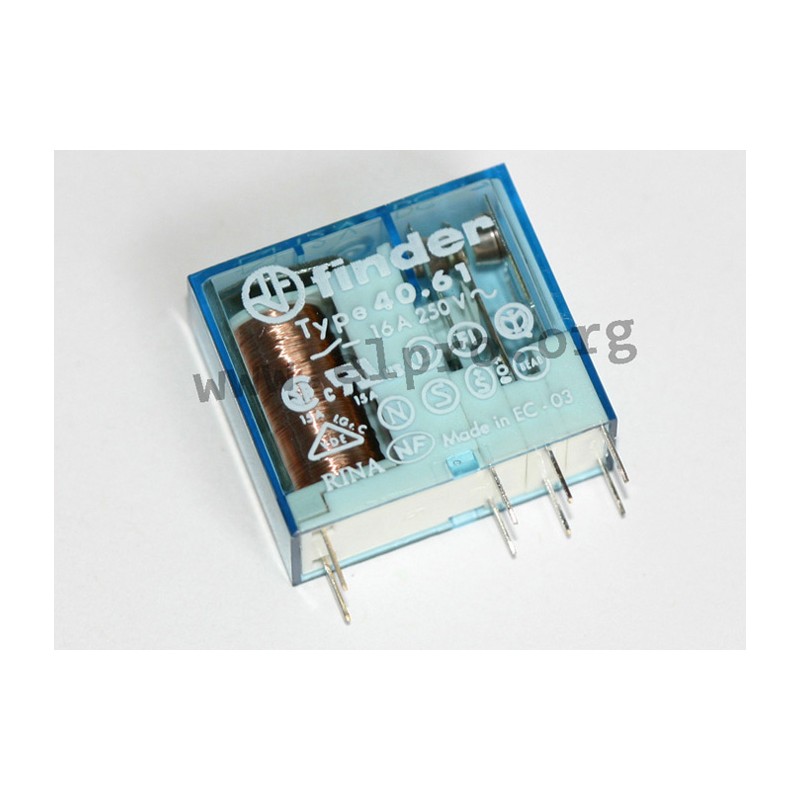

Finder 40.61 series

40.61.7.005.4000

253448 40.61.7.005.4000 40.61.7.005.4000 Finder PCB relays series 40.61. Flux protected (260°C, 5s) PCB relays available in versions with DC or AC coil. These relays conform with relay protection class RTII. We offer various types of this Finder series. contact: SPDT (Double Contact) contact material: AgCdO (40.61_), resp. AgSnO2 (40.61_A) rated current: 16A max. switching current: 30A max. switching voltage: 400V AC max. switching power (AC/DC): 750/4000VA mechanical (AC/DC): 10x106/20x106 operations electrical: 10x104 operations operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 40.61.7.005.4000
Rated current [mA] 100
Nominal voltage [V] 5
Switching current [A] 16
Nominal resistance [Ω] 50
Response voltage [V] 3,7
Max. starting current [A] 30

Unit price

4,79 €

Stock: 20
Next incoming goods:
CW 52/2025
50 units

Further delivery:
CW 07/2026

Minimum order quantity 10 units or
multiples of 10.
