48.P5.7.024.0050

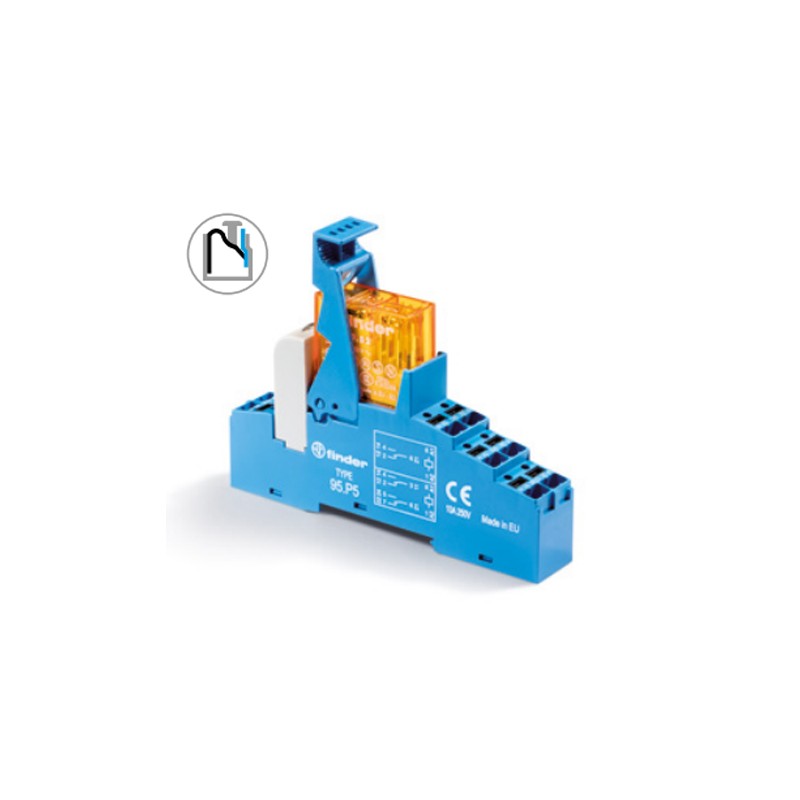

Finder switching relays series 48.P5

These switching relays with push-in clamps, for carrier rails with 35mm, have two changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the followingtypes of this Finder series: 48.P5.7.012.0050, 48.P5.7.024.0050, and 48.P5.8.230.0060.

  • contact type: 2x changeover contact
  • contact material: AgNi
  • nominal switching current: 8A
  • switching current: 15A
  • nominal voltage: 250V AC
  • switching voltage, max.: 400V AC
  • switching power, max.: 2000VA
  • switching load, min.: 300mV
  • operating temperature: -40 to +70°C

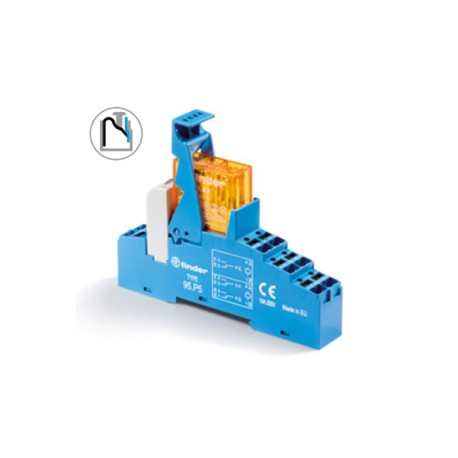

48.P5.7.024.0050, Finder switching relays, 8A, 2x changeover contact (DPDT), 48.P5 series

48.P5.7.024.0050

253494 48.P5.7.024.0050 48.P5.7.024.0050 Finder switching relays series 48.P5. These switching relays with push-in clamps, for carrier rails with 35mm, have two changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the followingtypes of this Finder series: 48.P5.7.012.0050, 48.P5.7.024.0050, and 48.P5.8.230.0060. contact type: 2x changeover contact contact material: AgNi nominal switching current: 8A switching current: 15A nominal voltage: 250V AC switching voltage, max.: 400V AC switching power, max.: 2000VA switching load, min.: 300mV operating temperature: -40 to +70°C

Specifications

manufacturer
Manufacturer's name 48.P5.7.024.0050
Nominal voltage [V DC] 24
Max. operating voltage [V DC] 36

Unit price

14,69 €

Stock: 7
Further delivery:
CW 07/2026
