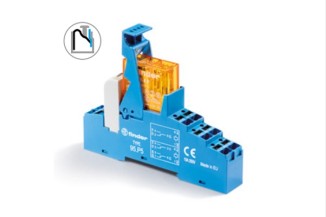

Finder switching relays series 48.P5

These switching relays with push-in clamps, for carrier rails with 35mm, have two changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. The...

Finder switching relays series 48.P5

These switching relays with push-in clamps, for carrier rails with 35mm, have two changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the followingtypes of this Finder series: 48.P5.7.012.0050, 48.P5.7.024.0050, and 48.P5.8.230.0060.

  • contact type: 2x changeover contact
  • contact material: AgNi
  • nominal switching current: 8A
  • switching current: 15A
  • nominal voltage: 250V AC
  • switching voltage, max.: 400V AC
  • switching power, max.: 2000VA
  • switching load, min.: 300mV
  • operating temperature: -40 to +70°C
