4C.01.9.012.4050

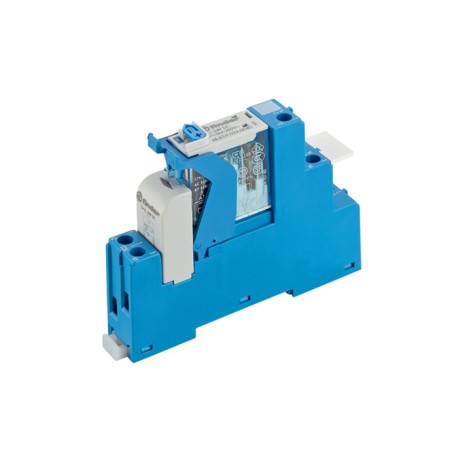

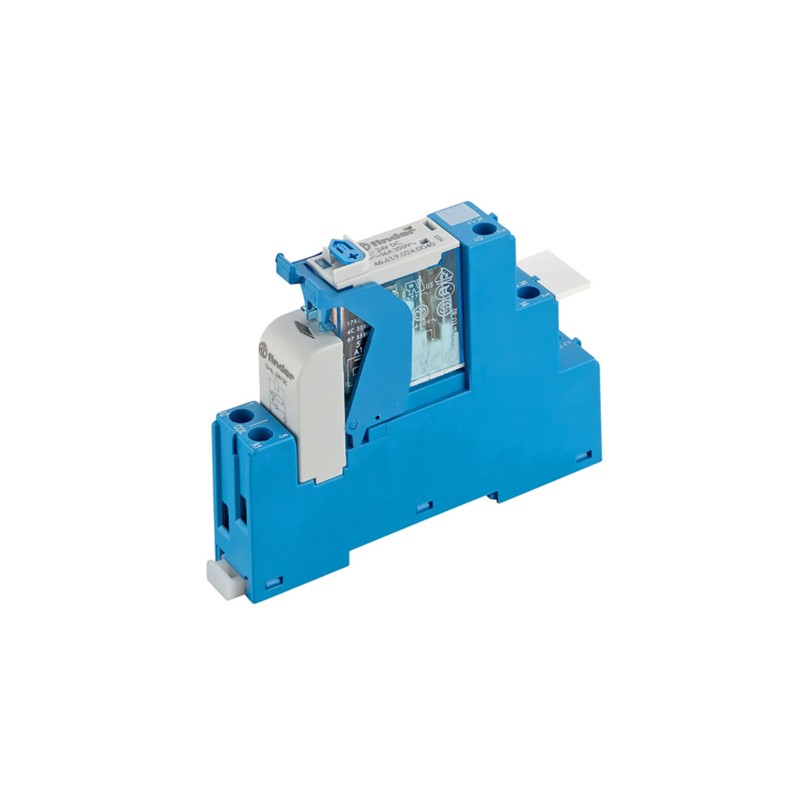

Finder switching relays series 4C.01

These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 16A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the following types of this Finder series: 4C.01.9.012.4050 and 4C.01.9.024.0050.

  • contact type: 1x changeover contact
  • contact material: AgNi
  • nominal switching current: 16A
  • switching current: 25A
  • nominal voltage: 250V AC
  • switching voltage, max.: 440V AC
  • switching power, max.: 4000VA
  • switching load, min.: 300mW
  • operating temperature: -40 to +50°C
4C.01.9.012.4050, Finder switching relays, 16A, 1x changeover contact (SPDT), 4C.01 series

4C.01.9.012.4050

253496 4C.01.9.012.4050 4C.01.9.012.4050 Finder switching relays series 4C.01. These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 16A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the following types of this Finder series: 4C.01.9.012.4050 and 4C.01.9.024.0050. contact type: 1x changeover contact contact material: AgNi nominal switching current: 16A switching current: 25A nominal voltage: 250V AC switching voltage, max.: 440V AC switching power, max.: 4000VA switching load, min.: 300mW operating temperature: -40 to +50°C

Specifications

manufacturer
Manufacturer's name 4C.01.9.012.4050
Nominal voltage [V DC] 12
Max. operating voltage [V DC] 13,2
