Finder switching relays series 4C.01

These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 16A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. ...

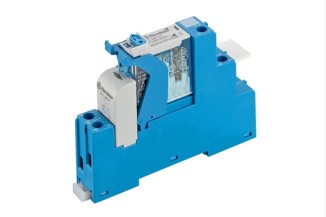

Finder switching relays series 4C.01

These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 16A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the following types of this Finder series: 4C.01.9.012.4050 and 4C.01.9.024.0050.

  • contact type: 1x changeover contact
  • contact material: AgNi
  • nominal switching current: 16A
  • switching current: 25A
  • nominal voltage: 250V AC
  • switching voltage, max.: 440V AC
  • switching power, max.: 4000VA
  • switching load, min.: 300mW
  • operating temperature: -40 to +50°C
> More
Data Sheet
