55.34.8.024.0040

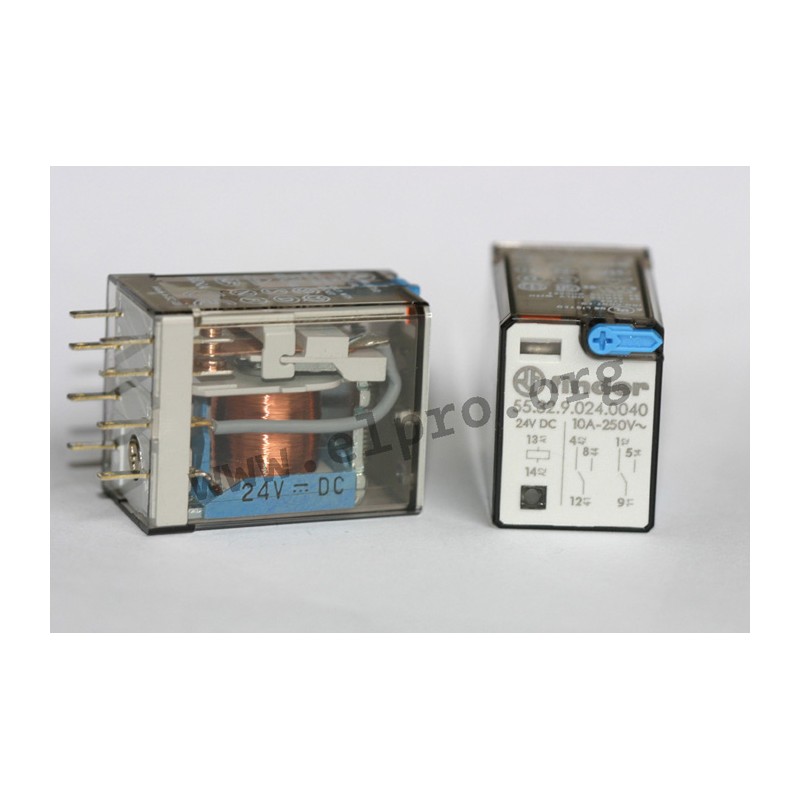

Finder industrial relays series 55

Relais with lockable test button and mechanical flag indicators and solder/plug-in terminals of 2x0.5mm. These relays conform with protection class RTI. We offer various types of this Finder series.

  • contact: DPDT (55.32-_), resp. 4PDT (55.34-_)
  • contact material: AgNi (55.32-_/34-_), resp. AgNi+Au (5µm) (55.34-_G)
  • rated current: 10A (55.32-_), resp. 7A (55.34-_)
  • max. switching current: 20A (55.32-_), resp. 15A (55.34-_)
  • max. switching voltage: 400V AC (55.32-_), resp. 250V AC (55.34-_)
  • max. switching power: 2500VA (55.32-_), resp. 1750VA (55.34-_)
  • operating temperature: -40 to +85°C

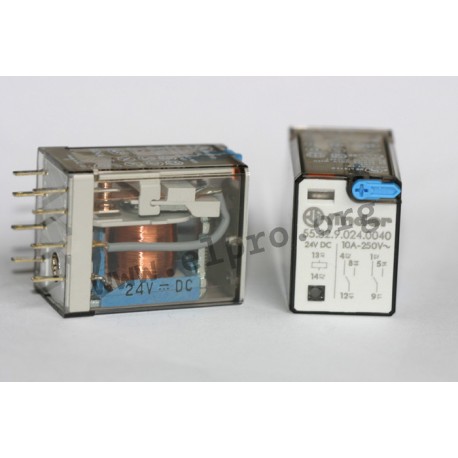

Finder 55 series

55.34.8.024.0040

253480 55.34.8.024.0040 55.34.8.024.0040 Finder industrial relays series 55. Relais with lockable test button and mechanical flag indicators and solder/plug-in terminals of 2x0.5mm. These relays conform with protection class RTI. We offer various types of this Finder series. contact: DPDT (55.32-_), resp. 4PDT (55.34-_) contact material: AgNi (55.32-_/34-_), resp. AgNi+Au (5µm) (55.34-_G) rated current: 10A (55.32-_), resp. 7A (55.34-_) max. switching current: 20A (55.32-_), resp. 15A (55.34-_) max. switching voltage: 400V AC (55.32-_), resp. 250V AC (55.34-_) max. switching power: 2500VA (55.32-_), resp. 1750VA (55.34-_) operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 55.34.8.024.0040
Rated current [mA] 53
Switch positions 4 changeover...
Nominal voltage [V] 24V AC
Switching current [A] 7
Nominal resistance [Ω] 190
Response voltage [V] 19,2
Max. switching voltage [V] 250V AC
Max. switching power [VA] 1750
Data Sheet

Unit price

8,49 €

Stock: 10
Further delivery:
CW 07/2026

Minimum order quantity 5 units or
multiples of 5.
