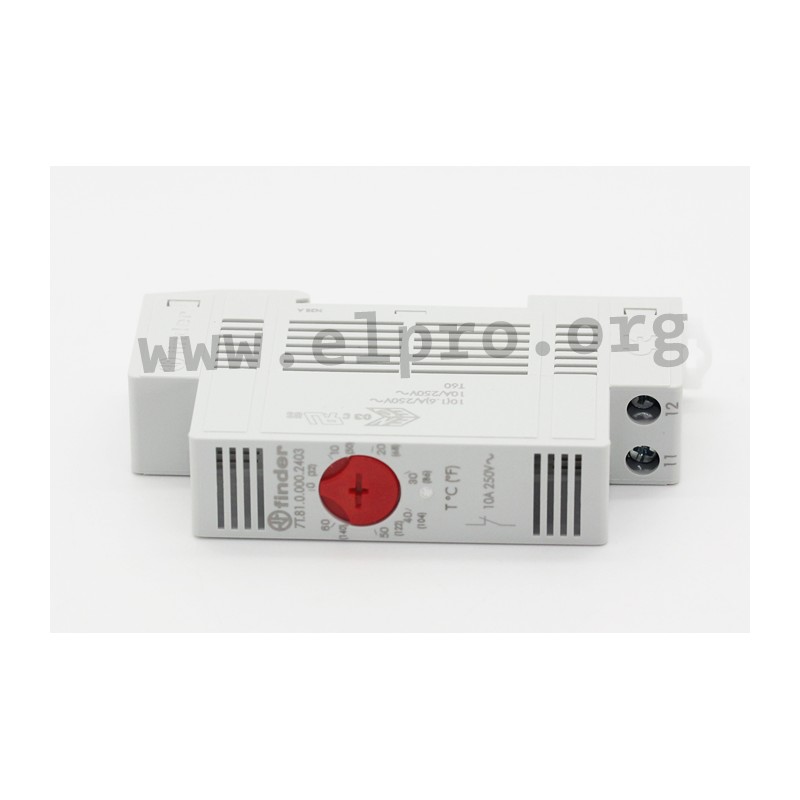

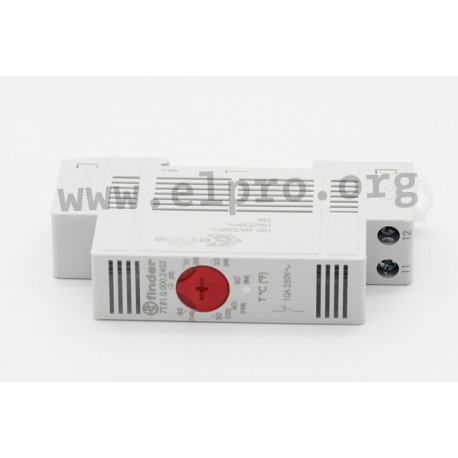

7T.81.0.000.2403

adjustable thermostate, 7T von Finder

• series: 7T
• temperature controllers for mounting in switch cabinets

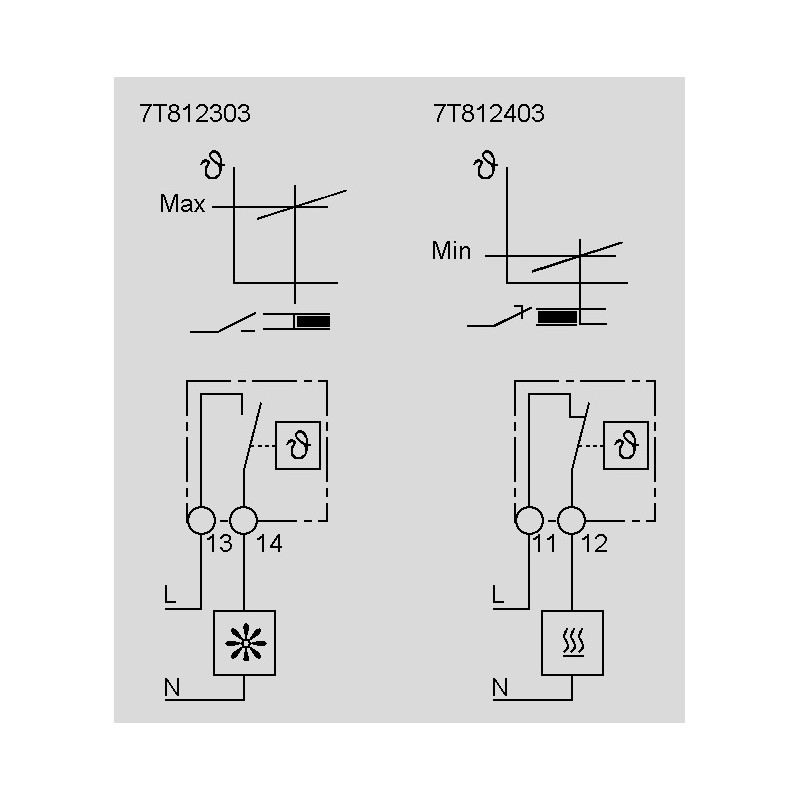

• contact: SPST-NC
• small, compact size
• snap action thermostatic bimetal sensor
• wide temperature setting range
• long electrical life
• no power supply required
• 35mm rail (EN 60715) mount
• protection catagory: IP20
• contact material: AgNi
• rated current, max.: 10A
• max. switching current: 10A
• rated voltage: 250V AC
• max. switching voltage: 250V AC
• max. rated load, AC1:: 2500VA
• max. rated load, AC15 (230V AC): 250VA
• max. breaking capacity, DC1 (30/110/220V): 1A/0,3A/0,15A
• min. switching load: 500mW
• recovery time, electrical:: 100x103 operations
• operating temperatur: -45...+80°C
• by Finder

7T.81.0.000.2403

41620 7T.81.0.000.2403 7T.81.0.000.2403 adjustable thermostate, 7T von Finder. • series: 7T• temperature controllers for mounting in switch cabinets• contact: SPST-NC• small, compact size• snap action thermostatic bimetal sensor• wide temperature setting range• long electrical life• no power supply required• 35mm rail (EN 60715) mount• protection catagory: IP20• contact material: AgNi• rated current, max.: 10A• max. switching current: 10A• rated voltage: 250V AC• max. switching voltage: 250V AC• max. rated load, AC1:: 2500VA• max. rated load, AC15 (230V AC): 250VA• max. breaking capacity, DC1 (30/110/220V): 1A/0,3A/0,15A• min. switching load: 500mW• recovery time, electrical:: 100x103 operations• operating temperatur: -45...+80°C• by Finder

Specifications

manufacturer
Manufacturer's name 7T.81.0.000.2403
Data Sheet

Unit price

21,29 €

Stock: 20
Further delivery:
CW 28/2024
