SY-5-K

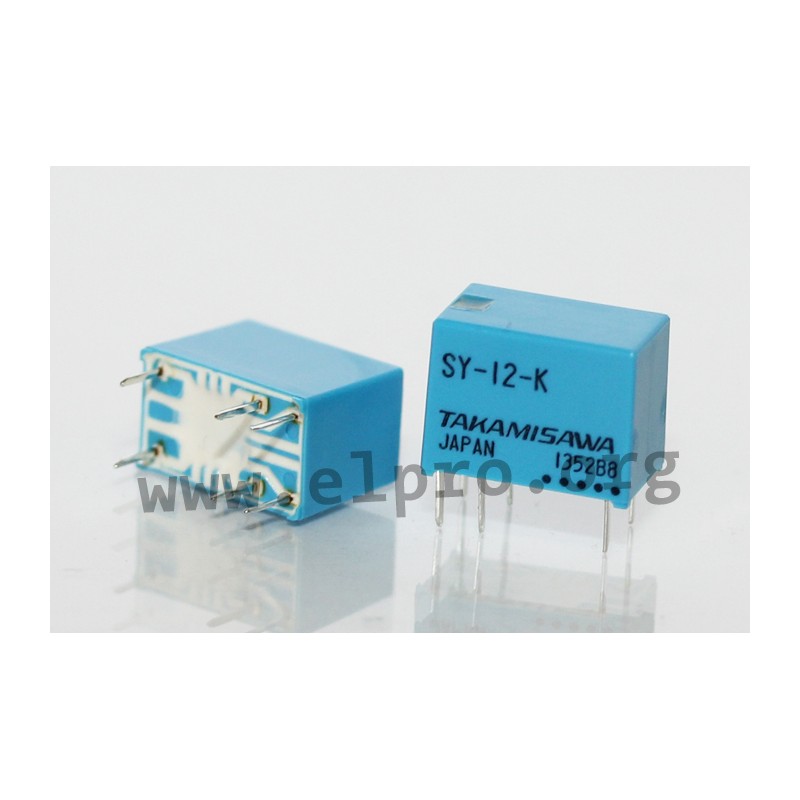

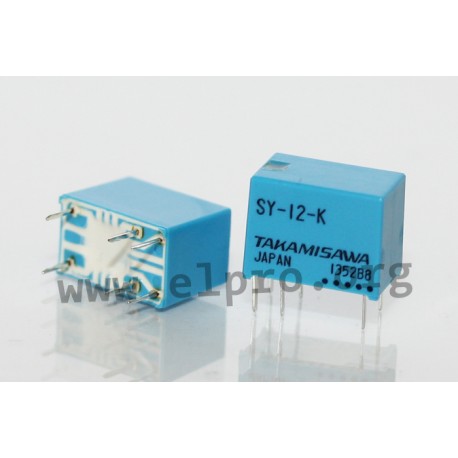

PCB relays 1A, SY by Fujitsu/Takamisawa

* series: SY
* contact: SPDT

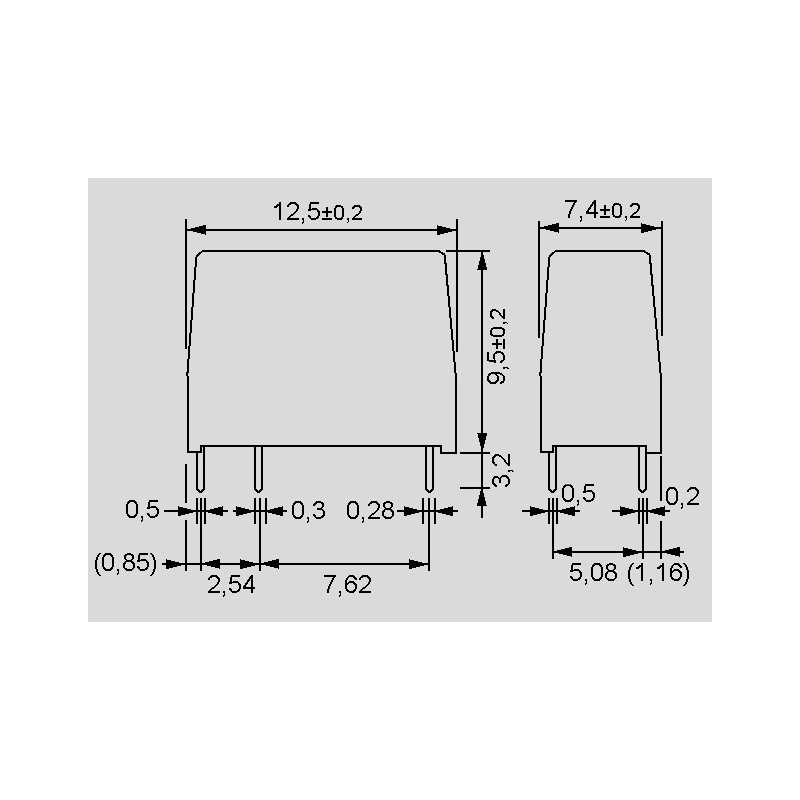

* housing: 12.5x9.5x7.4mm
* small size and ultra slim (only 7.5mm)
* low coil power consumption rated power 150...175mW
* contacts: gold overaly silver palladium for for high reliability
* wash tight construction RTIII
* contact material: AgPd, gold-plated
* rated current: 1A
* max. switching voltage: 120V AC / 60V DC
* max. switching power: 60VA / 24W
* operate/release time: 5/2ms
* testing voltage (FCC) oil/contact(1min.): 1000V AC
* testing voltage (FCC) open contacs(1min.): 400V AC
* lifetime mechanical, min.: 5x106 operations
* lifetime electrical, min.: 100x103 operations
* operating temperature: -30...+90°C
* by Fujitsu/Takamisawa
* weight approx.: 1.7g

SY-5-K

41579 SY-5-K SY-5-K PCB relays 1A, SY by Fujitsu/Takamisawa. * series: SY* contact: SPDT* housing: 12.5x9.5x7.4mm* small size and ultra slim (only 7.5mm)* low coil power consumption rated power 150...175mW* contacts: gold overaly silver palladium for for high reliability* wash tight construction RTIII* contact material: AgPd, gold-plated* rated current: 1A* max. switching voltage: 120V AC / 60V DC* max. switching power: 60VA / 24W* operate/release time: 5/2ms* testing voltage (FCC) oil/contact(1min.): 1000V AC* testing voltage (FCC) open contacs(1min.): 400V AC* lifetime mechanical, min.: 5x106 operations* lifetime electrical, min.: 100x103 operations* operating temperature: -30...+90°C* by Fujitsu/Takamisawa* weight approx.: 1.7g

Specifications

manufacturer
Manufacturer's name SY-5-K
Min. operating voltage [V DC] 3,5
Nominal resistance [Ω] 167
Release voltage [V] >0,25
Nominal capacity [mW] 150
Data Sheet

Unit price

0,986 €

Stock: 730
Further delivery:
CW 34/2024

Minimum order quantity 10 units or
multiples of 10.
