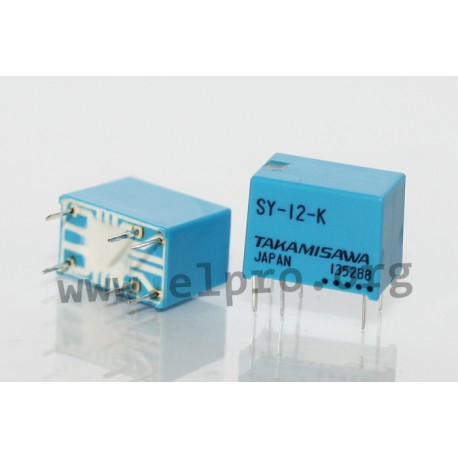

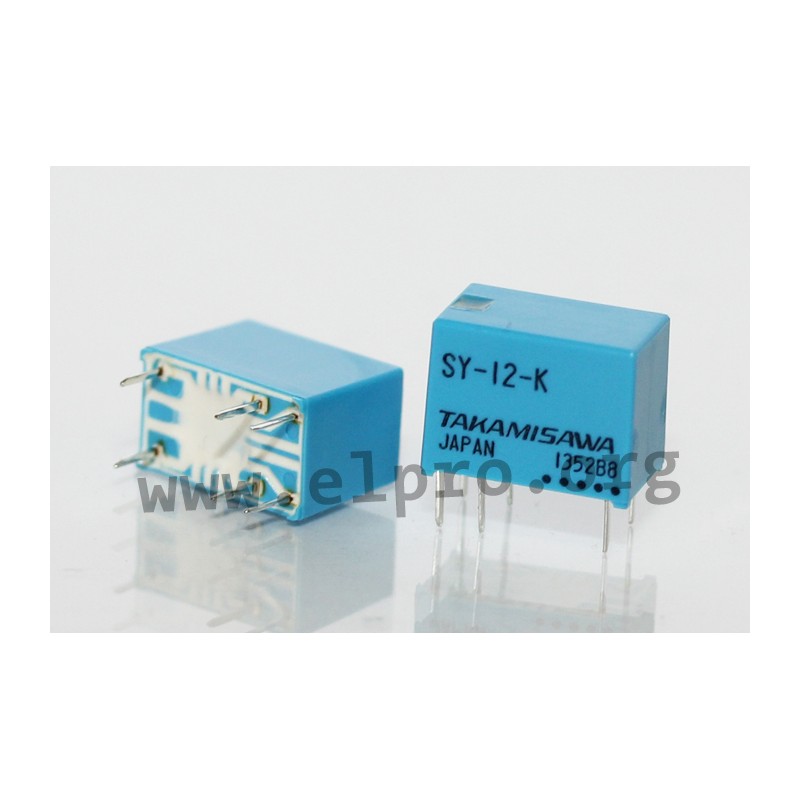

SY-12-K
PCB relays 1A, SY by Fujitsu/Takamisawa
* series: SY

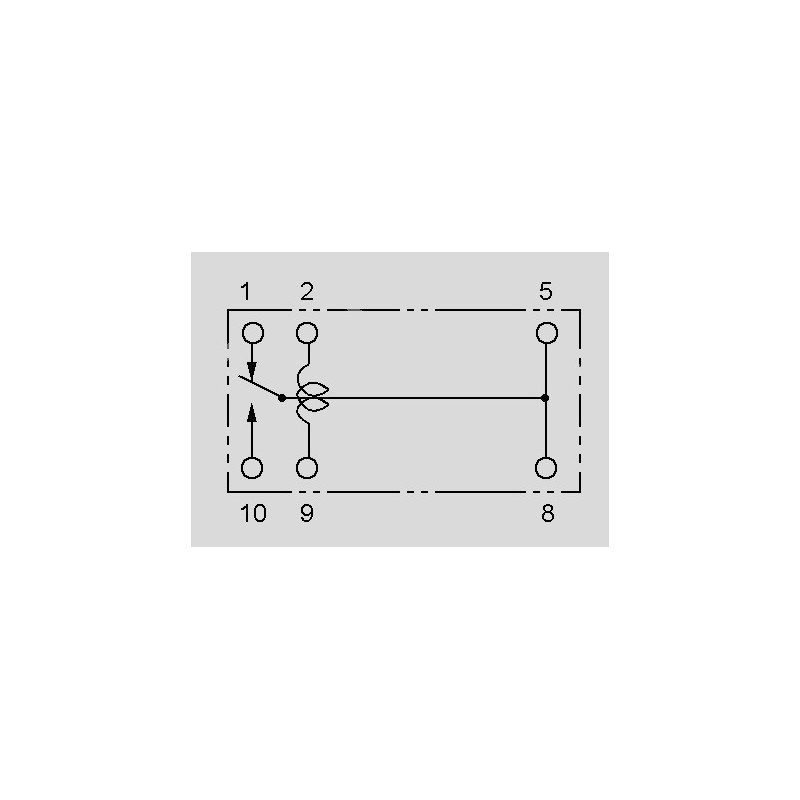

* contact: SPDT

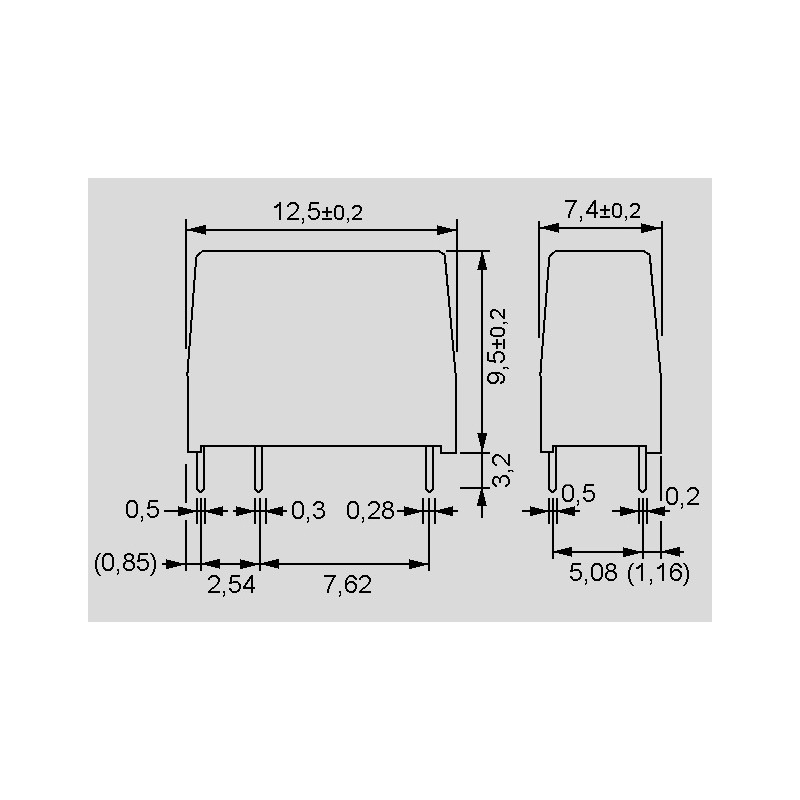

* housing: 12.5x9.5x7.4mm
* small size and ultra slim (only 7.5mm)
* low coil power consumption rated power 150...175mW
* contacts: gold overaly silver palladium for for high reliability
* wash tight construction RTIII
* contact material: AgPd, gold-plated
* rated current: 1A
* max. switching voltage: 120V AC / 60V DC
* max. switching power: 60VA / 24W
* operate/release time: 5/2ms
* testing voltage (FCC) oil/contact(1min.): 1000V AC
* testing voltage (FCC) open contacs(1min.): 400V AC
* lifetime mechanical, min.: 5x106 operations
* lifetime electrical, min.: 100x103 operations
* operating temperature: -30...+90°C
* by Fujitsu/Takamisawa
* weight approx.: 1.7g
