MPC70 0,27 R

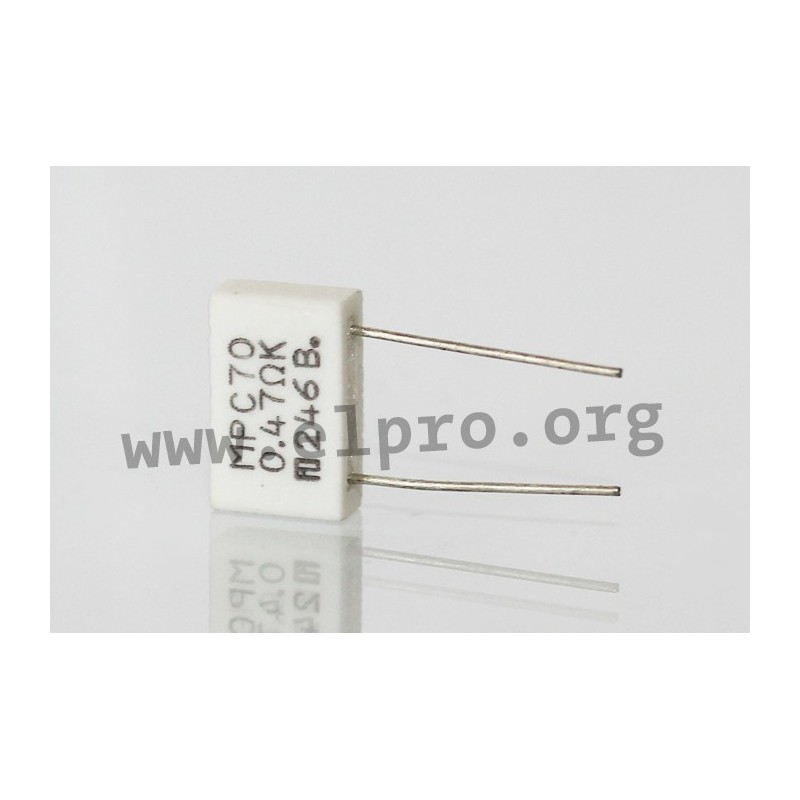

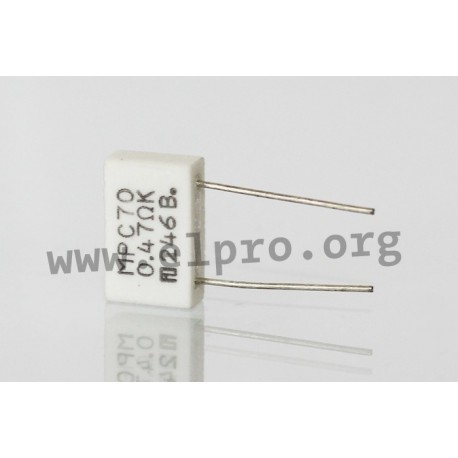

metal band resistors MPC by Fukushima Futaba

• style: bulk
• pitch: 9mm
• series: MPC
• by Fukushima Futaba
• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)
• very small inductive reactanceery small inductive reactance
• uniform distribution of temperature over the resistive element
• hermetically closed ceramic case
• idle zones in the case are filled before shutting with special cement with ceramic powder.
• almost uniform heat dissipation over the entire housing body
• resistance tolerance: ±10%
• power rating: 2 W
• temperature coefficient: ±350ppm/°C
• insulation resistance: 10mΩ
• temperature range: -25 to +200°C
• solderability (3s): 350°C

MPC70 0,27 R

45987 MPC70 0,27 R MPC70 0R27 K MPC70 0R27 K metal band resistors MPC by Fukushima Futaba. • style: bulk• pitch: 9mm• series: MPC• by Fukushima Futaba• the resistor element is punched like meander out of a special metalband (special alloy of Ni/Cr/Fe/Cu)• very small inductive reactanceery small inductive reactance• uniform distribution of temperature over the resistive element• hermetically closed ceramic case• idle zones in the case are filled before shutting with special cement with ceramic powder.• almost uniform heat dissipation over the entire housing body• resistance tolerance: ±10%• power rating: 2 W• temperature coefficient: ±350ppm/°C• insulation resistance: 10mΩ• temperature range: -25 to +200°C• solderability (3s): 350°C

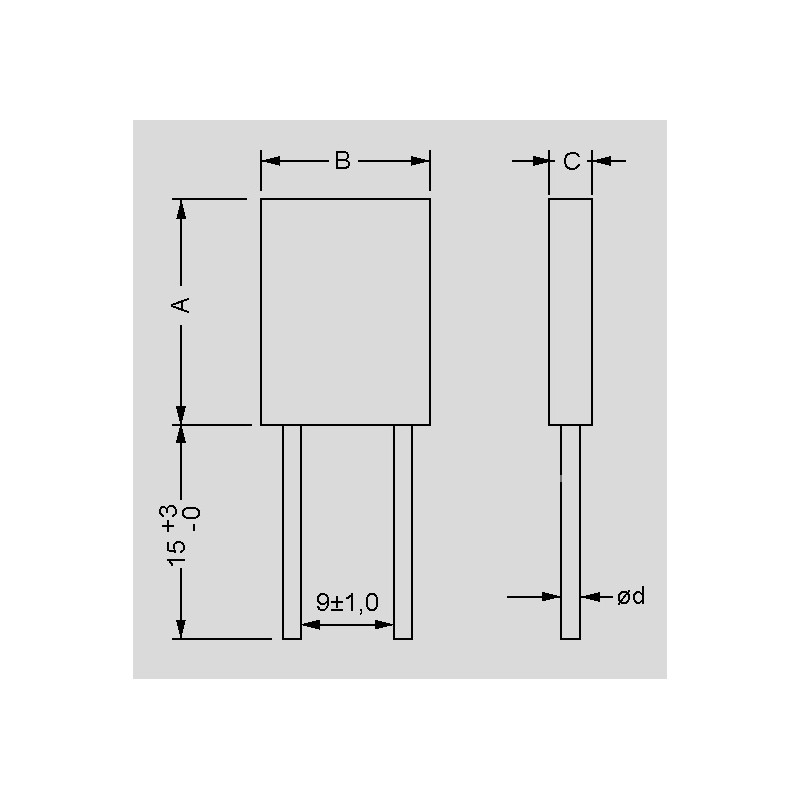

Specifications

manufacturer
Manufacturer's name MPC70 0R27 K
A [mm] 8
Resistance [Ω] 0,27
Power [W] 2
Tolerance [%] 10
B [mm] 13
D [mm] 0,6
C [mm] 4
Data Sheet

Unit price

0,451 €

Stock: 116
Next incoming goods:
CW 15/2024
100 units


Further delivery:
CW 45/2024

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
