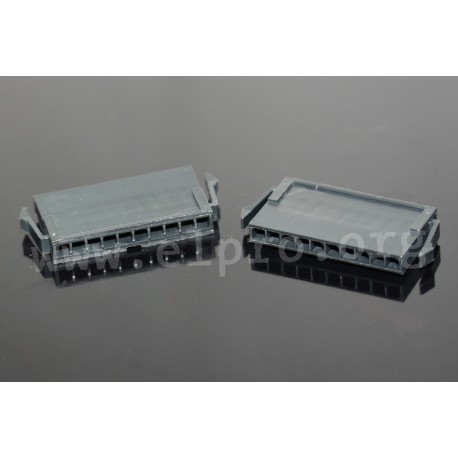

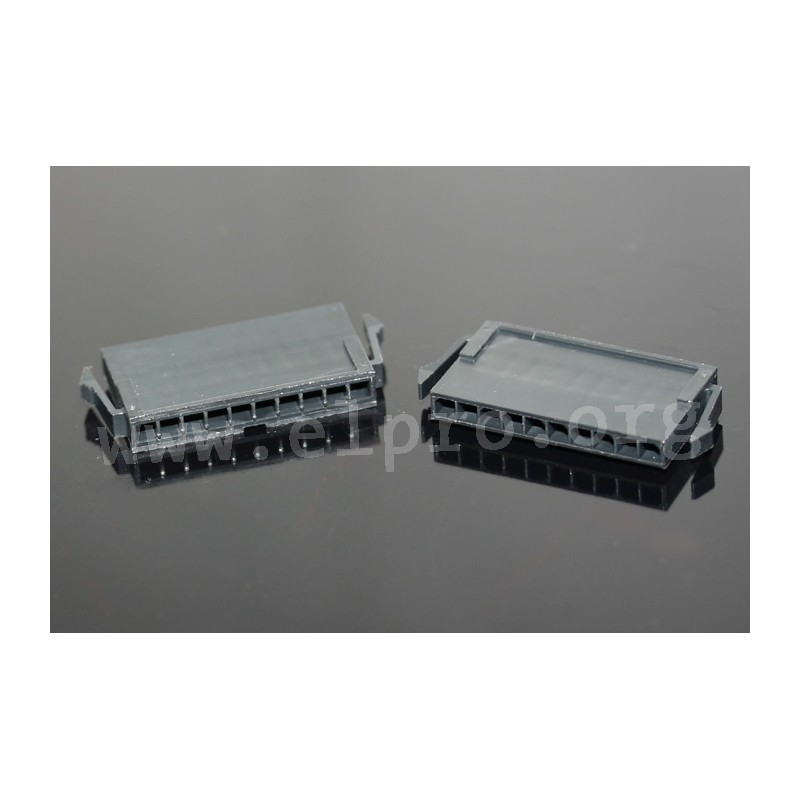

87 W 301X1C 10

cap housings

• panel mounting or free hanging and a locating device in instrument panels and PCBs
• cap housing for application in crimp pin contacts
• pitch: 3mm
• housing material: nylon 6.6
• flammabilty class: UL94V-0
• current rating, max.: 5A
• rated voltage: 250V AC/DC
• temperature range: -25...+105°C

87 W 301X1C 10

34083 87 W 301X1C 10 87 W 301X1C 10 cap housings. • panel mounting or free hanging and a locating device in instrument panels and PCBs• cap housing for application in crimp pin contacts• pitch: 3mm• housing material: nylon 6.6• flammabilty class: UL94V-0• current rating, max.: 5A• rated voltage: 250V AC/DC• temperature range: -25...+105°C

Discontinued items. Only remainder of stock available.

Specifications

Number of poles 1x10
A [mm] 27
Width [mm] 30,85
Data Sheet

Unit price

0,093 €

Stock: 10

Minimum order quantity 10 units or
multiples of 10.
