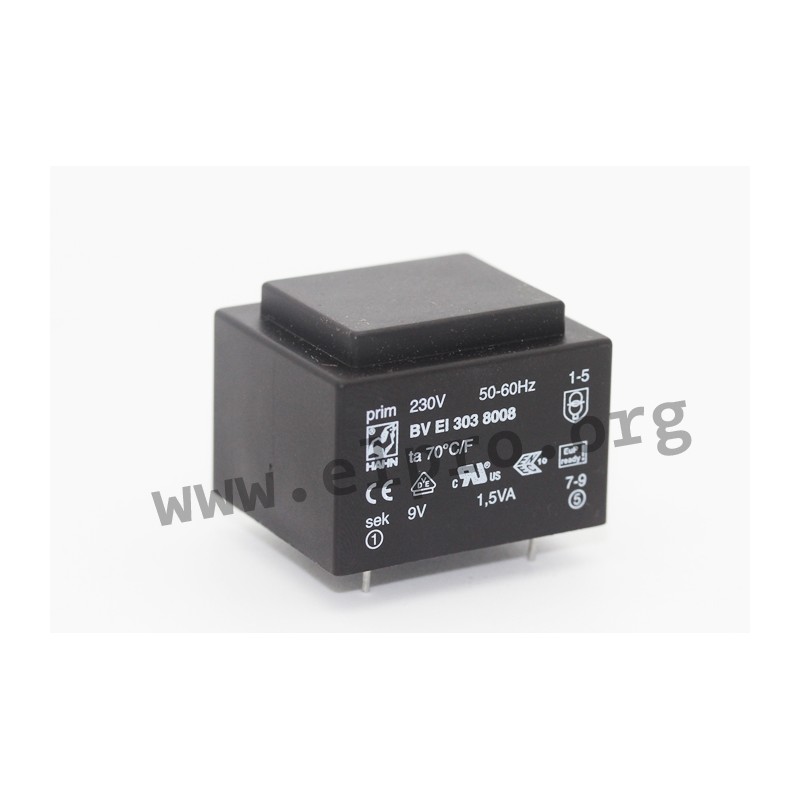

BV EI 303 8008

print transformators 1.5VA by Hahn

• power, max. (Ta 70/F): 1.5VA
• core: EI30
• short-circuit proof
• open circuit dissipation loss less 0.4W
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB use
• self-extinguishing material
• compact size


• temperature resistance class°): Ta 70/F
• primary voltage, max. (50/60Hz): 230V AC
• max. permissible temperature
• in case of short-circuit, DIN EN 61558: 210°C
• max. end temperature isolation class F, DIN EN 61558: 140°C

°) the maximum permissible continuous ambient temperature applies in the event of short-circuit

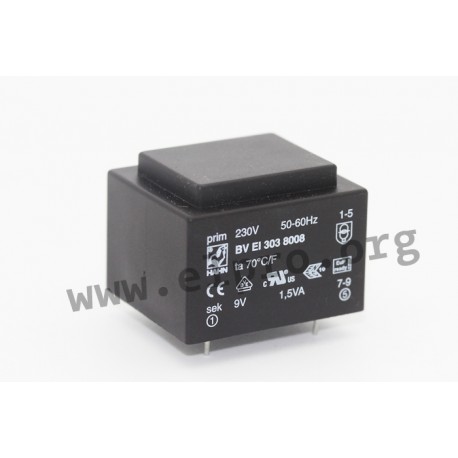

BV EI 303 8008

38900 BV EI 303 8008 BVEI3038008 BVEI3038008 print transformators 1.5VA by Hahn. • power, max. (Ta 70/F): 1.5VA• core: EI30• short-circuit proof• open circuit dissipation loss less 0.4W• winding of double coated copper wire for better insulation, vacuum casted, two chambers• connections for PCB use• self-extinguishing material• compact size • temperature resistance class°): Ta 70/F• primary voltage, max. (50/60Hz): 230V AC• max. permissible temperature• in case of short-circuit, DIN EN 61558: 210°C• max. end temperature isolation class F, DIN EN 61558: 140°C°) the maximum permissible continuous ambient temperature applies in the event of short-circuit

Discontinued items. Only remainder of stock available.

Data sheet

manufacturer
manufacturer's name BVEI3038008

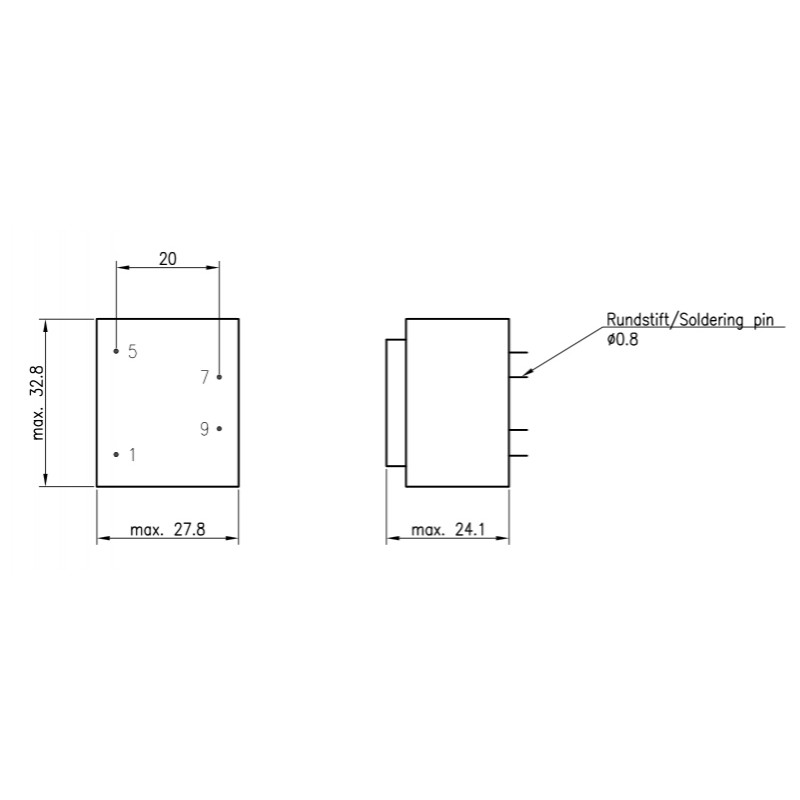

connection schema 1
secondary current [mA] 167
height [mm] 24,1
secondary voltage [V] 1x9
open circuit voltage [V] 1x14

Download

Data Sheet

16,79 €

Volume discounts

5 pcs. / 6,19 €

stock: 90
