BV UI 21 0005

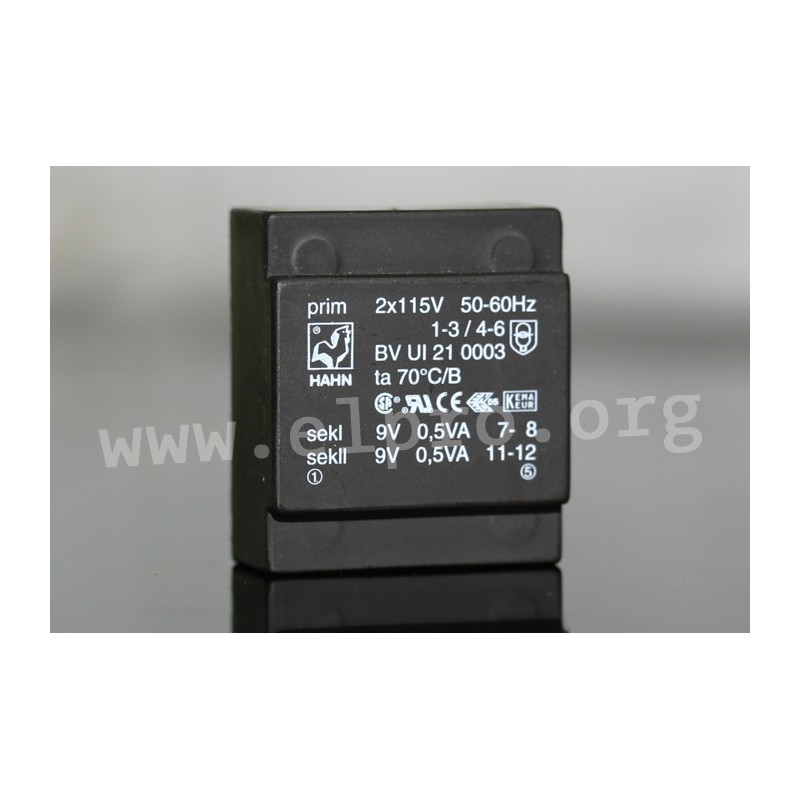

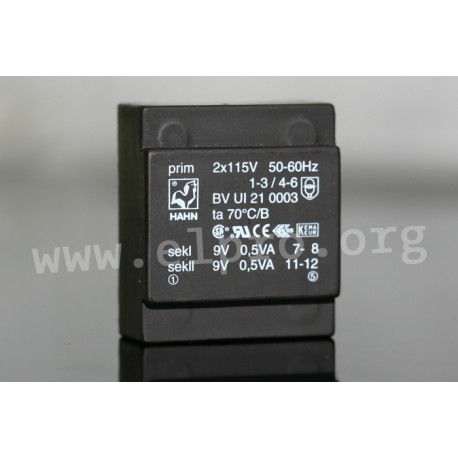

Hahn flat transformers

Vacuum encapsulated flat transformers with 1VA and a UI21 core. These components are short circuit proof and suitable for PCB mounting. They comply with EN61558 as well as VDE 0570 and have double primary as well as secondary windings and are suitable for 115V as well as 230V power supplies. We offer the following types of this Hahn series: BV UI 21 0002, BV UI 21 0003, BV UI 21 0004 and BV UI 21 0005.

  • core: UI 21
  • output: 1VA
  • input voltage: 2x115V
  • short circuit proof

BV UI 21 0005

29235 BV UI 21 0005 BVUI210005 BVUI210005 Hahn flat transformers . Vacuum encapsulated flat transformers with 1VA and a UI21 core. These components are short circuit proof and suitable for PCB mounting. They comply with EN61558 as well as VDE 0570 and have double primary as well as secondary windings and are suitable for 115V as well as 230V power supplies. We offer the following types of this Hahn series: BV UI 21 0002, BV UI 21 0003, BV UI 21 0004 and BV UI 21 0005. core: UI 21 output: 1VA input voltage: 2x115V short circuit proof

Specifications

manufacturer
Manufacturer's name BVUI210005
Secondary voltage [V] 2x15
Secondary current [A] 2x0,033
Data Sheet

Unit price

15,89 €

Stock: 21
Further delivery:
CW 32/2024
