BV EI 304 8013

Hahn PCB transformers

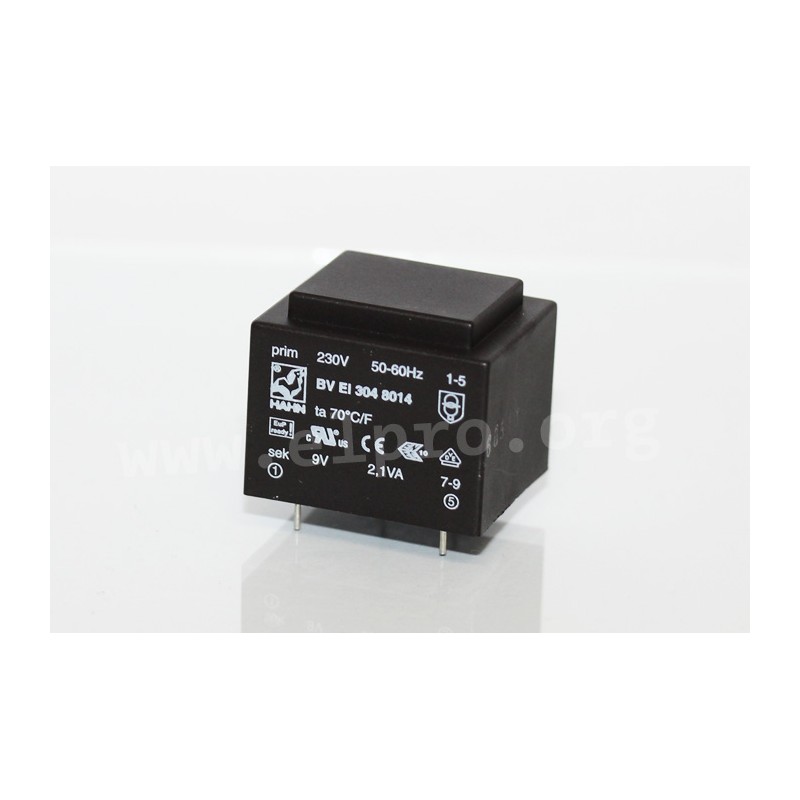

Transformers with 2,1VA and an EI 30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/F as well as EN61558. They have a low no-load power (<0,4W) and are suitable for PCB mounting. We offer the following types of this Hahn series: BV EI 304 8013 and BV EI 304 8014.

  • core: EI 30
  • output: 2,1VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 210°C
  • maximal end temperature: 140°C
  • no-load power: <0,4W

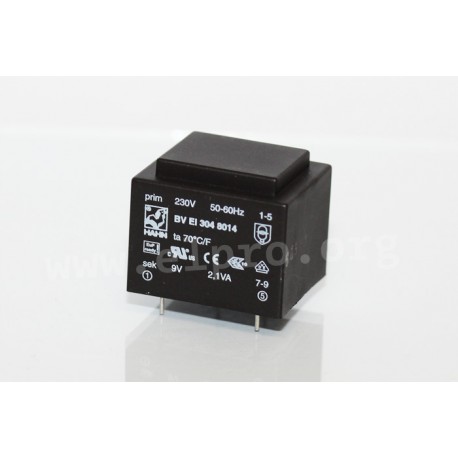

BV EI 304_

BV EI 304 8013

38905 BV EI 304 8013 BVEI3048013 BVEI3048013 Hahn&nbsp;PCB transformers. Transformers with 2,1VA and an EI 30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/F as well as EN61558. They have a low no-load power (&lt;0,4W) and are suitable for PCB mounting. We offer the following types of this Hahn series:&nbsp;BV EI 304 8013 and BV EI 304 8014. core: EI 30 output: 2,1VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/F maximal end temperature (short circuit): 210&deg;C maximal end temperature: 140&deg;C no-load power: &lt;0,4W

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BVEI3048013

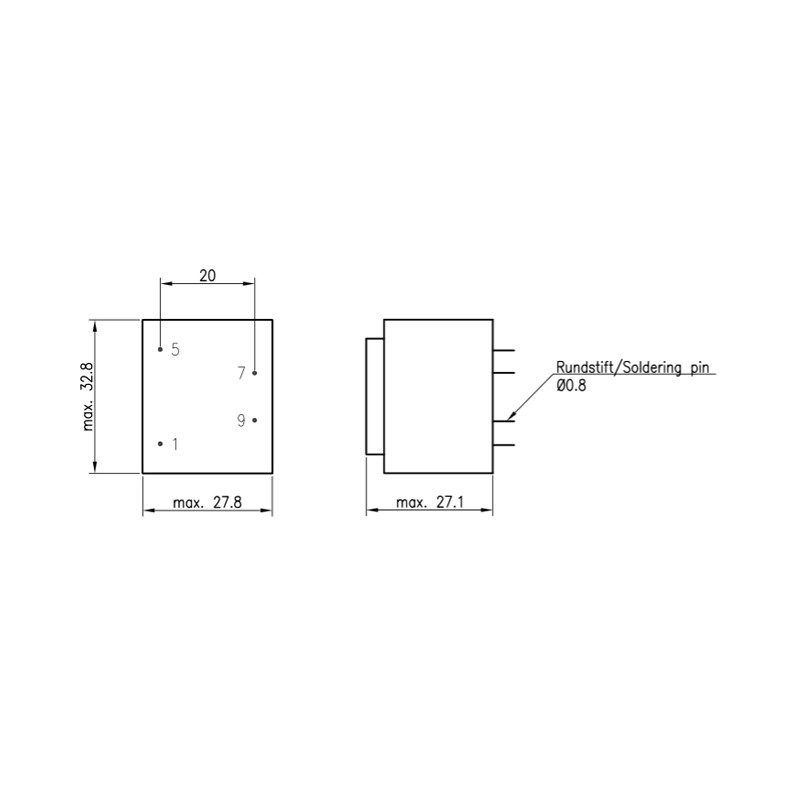

Connection schema 1
Secondary current [mA] 350
Height [mm] 27,1
Secondary voltage [V] 1x6
Open circuit voltage [V] 1x11
Data Sheet

Unit price

5,59 €

Stock: 9

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
