> Passive elements>Enclosures>Metal enclosures>Hammond diecast extruded aluminium enclosures, with end panels, 1455 series>MUGE 72

Manufacturers

MUGE 72

Hammond diecast extruded aluminium enclosure series 1455

  • sturdy enclosures made of aluminium
  • with an anodised extruded profile and a good EMC transmission performance rating
  • end panels made of ABS
  • suitable for PCB mounting (max. strength 1,5mm)

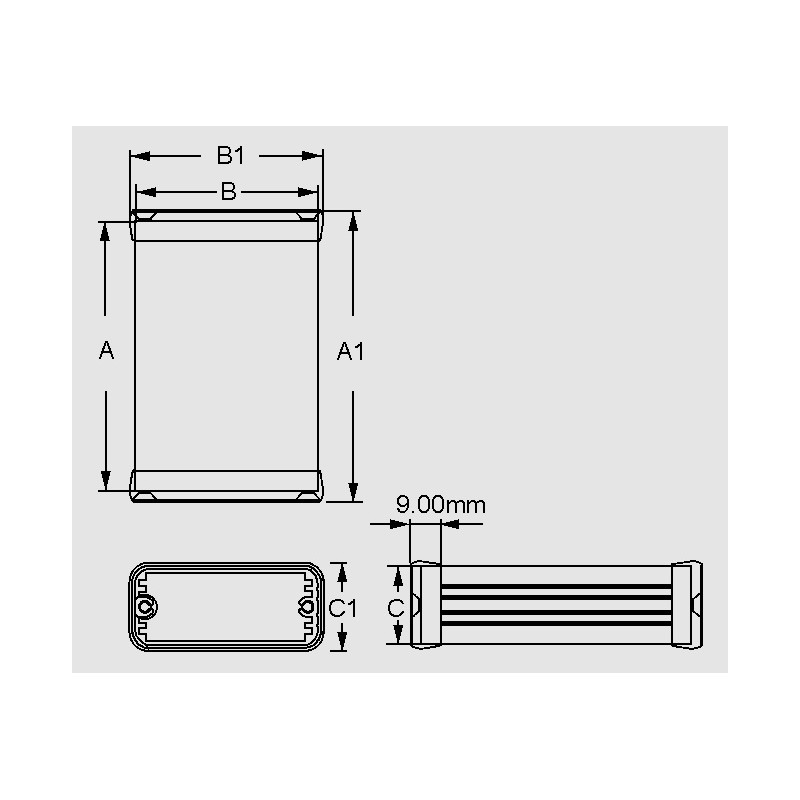

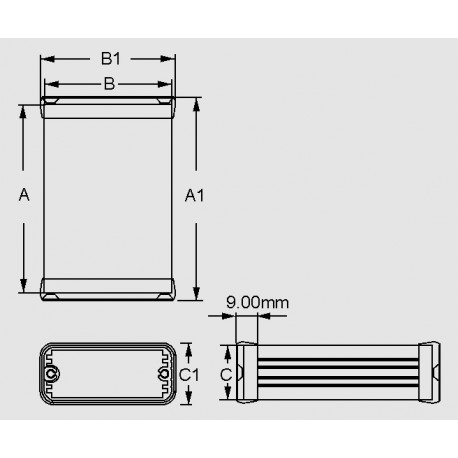

dimensions 1455C bis _T

MUGE 72

17075 MUGE 72 1455K1602 1455K1602 Hammond diecast extruded aluminium enclosure series 1455. sturdy enclosures made of aluminium with an anodised extruded profile and a good EMC transmission performance rating end panels made of ABS suitable for PCB mounting (max. strength 1,5mm)

Specifications

manufacturer
Manufacturer's name 1455K1602
Colour black anod.
A [mm] 160
Width [mm] 103
C [mm] 53
B1 [mm] 106
C1 [mm] 56
A1 [mm] 166
Data Sheet

Unit price

13,79 €

Stock: 9
Further delivery:
CW 23/2024
