MUGE 76

Hammond diecast extruded aluminium enclosure series 1455

  • sturdy enclosures made of aluminium
  • with an anodised extruded profile and a good EMC transmission performance rating
  • end panels made of ABS
  • suitable for PCB mounting (max. strength 1,5mm)

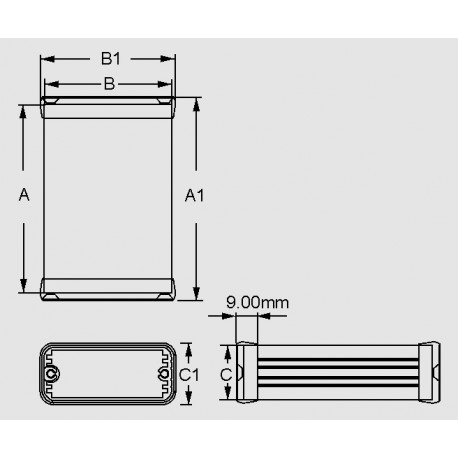

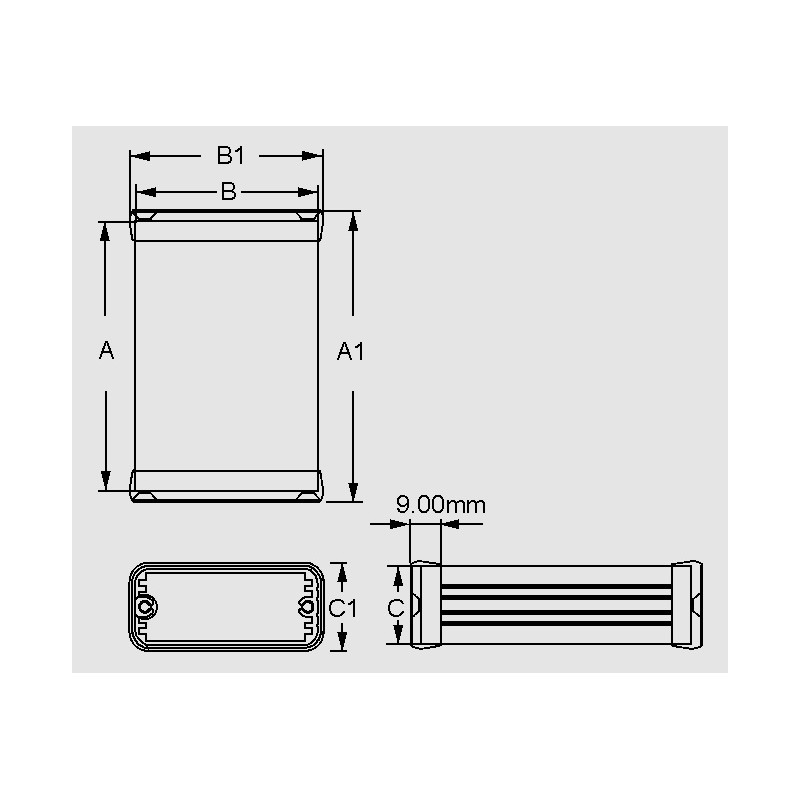

dimensions 1455C bis _T

MUGE 76

17079 MUGE 76 1455N2202 1455N2202 Hammond diecast extruded aluminium enclosure series 1455. sturdy enclosures made of aluminium with an anodised extruded profile and a good EMC transmission performance rating end panels made of ABS suitable for PCB mounting (max. strength 1,5mm)

Specifications

manufacturer
Manufacturer's name 1455N2202
Colour clear anod.
A [mm] 220
Width [mm] 103
C [mm] 53
B1 [mm] 106
C1 [mm] 56
A1 [mm] 226
Data Sheet

Unit price

21,59 €

Stock: 23
Further delivery:
CW 24/2024
