MUGE 238

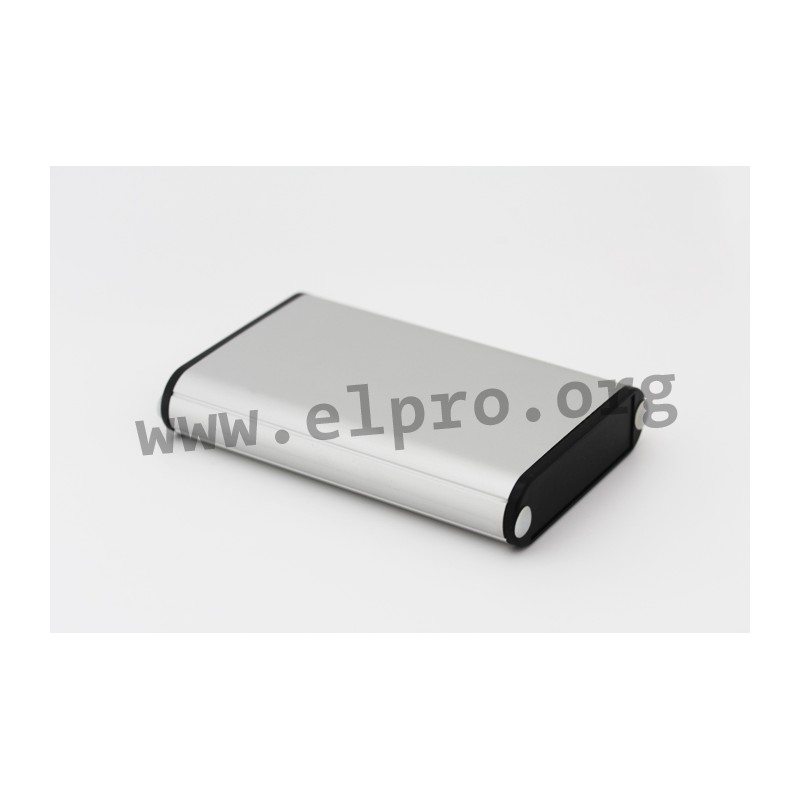

Hammond diecast extruded aluminium enclosure series 1455

  • sturdy enclosures made of aluminium
  • with an anodised extruded profile and a good EMC transmission performance rating
  • end panels made of ABS
  • suitable for PCB mounting (max. strength 1,5mm)

MUGE 238

29062 MUGE 238 1455B1002 1455B1002 Hammond diecast extruded aluminium enclosure series 1455. sturdy enclosures made of aluminium with an anodised extruded profile and a good EMC transmission performance rating end panels made of ABS suitable for PCB mounting (max. strength 1,5mm)

Specifications

manufacturer
Manufacturer's name 1455B1002
Colour clear anod.

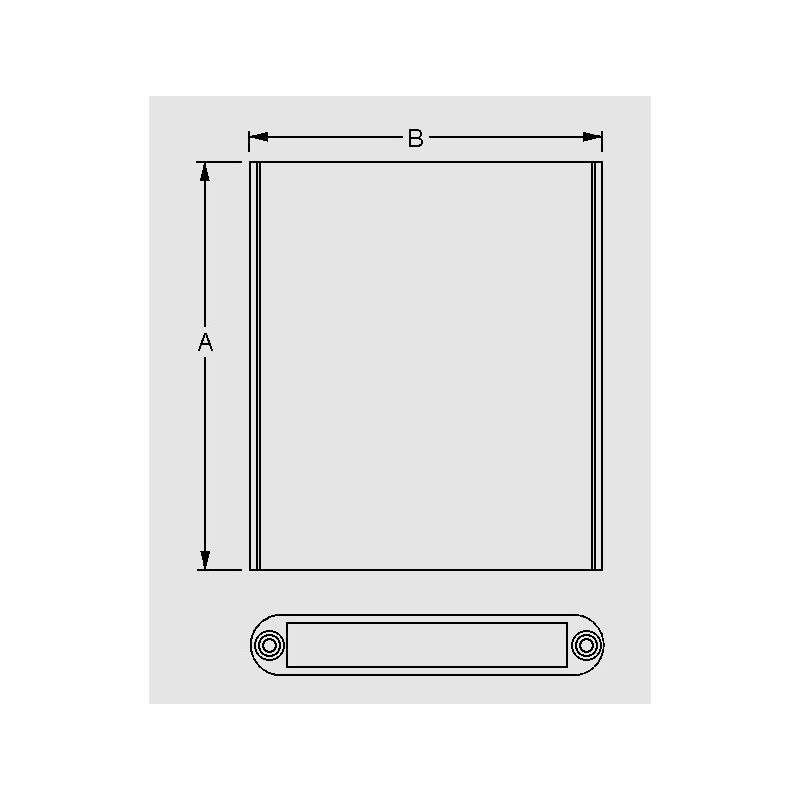

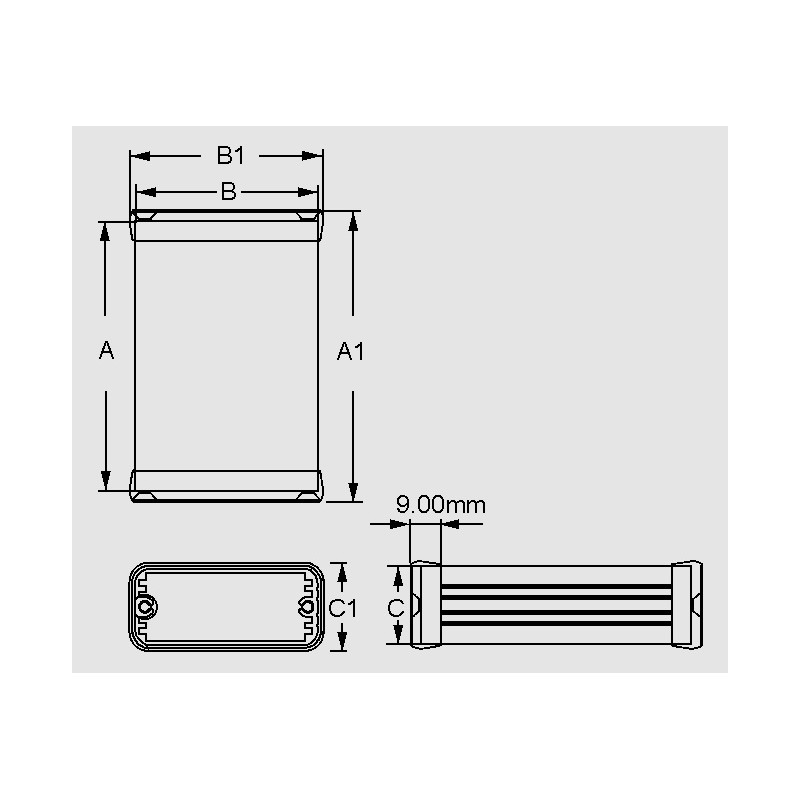

A [mm] 120
Width [mm] 54
C [mm] 23
B1 [mm] 57,25
C1 [mm] 26
A1 [mm] 126
Data Sheet

Unit price

8,69 €

Stock: 8
Further delivery:
CW 32/2024
