MUGE 229

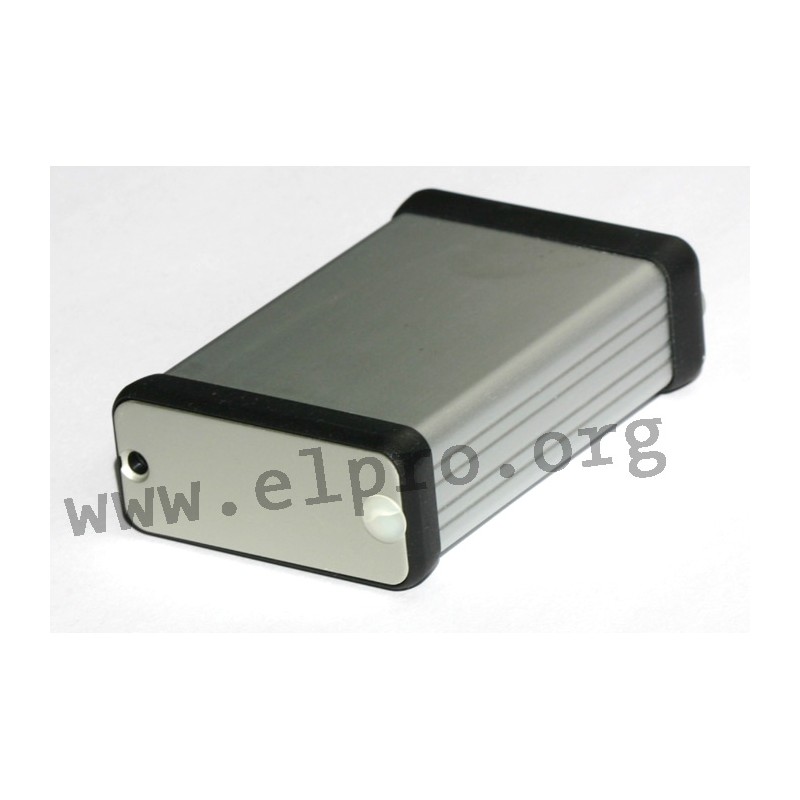

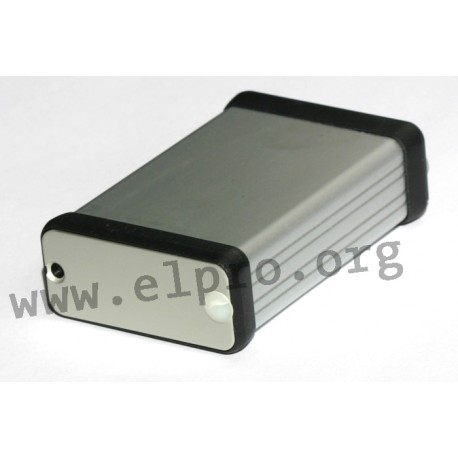

Hammond extruded aluminium enclosure series 1455

  • sturdy extruded enclosures made of aluminium
  • with an anodized finish, two aluminium end panels and a good EMV transmission performance rating
  • suitable for the insertion of PCBs (max. 1,5mm) through guiding grooves

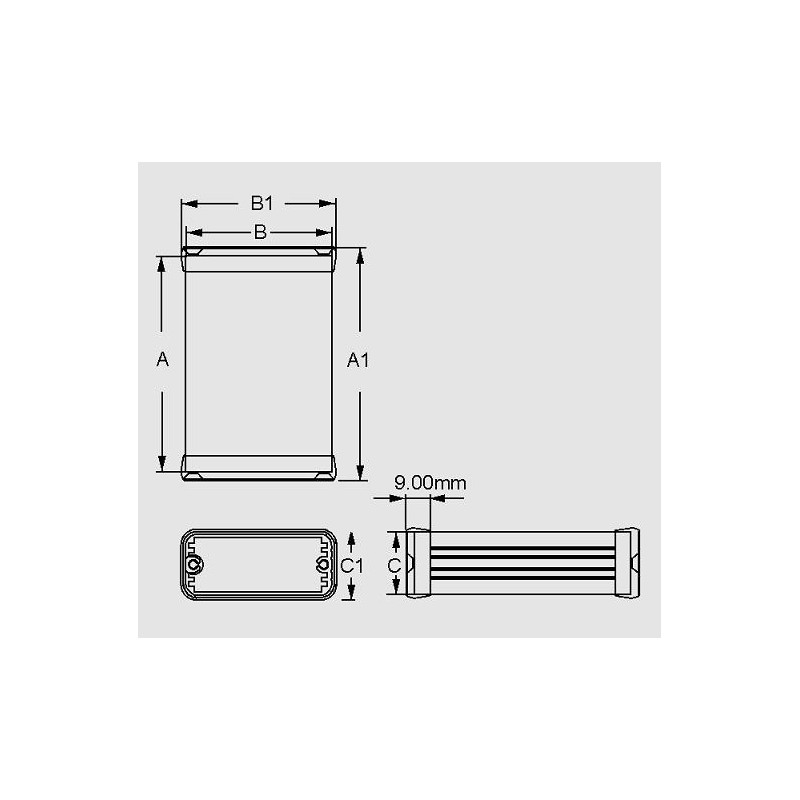

dimensions

MUGE 229

29089 MUGE 229 1455J1201 1455J1201 Hammond extruded aluminium enclosure series 1455. sturdy extruded enclosures made of aluminium with an anodized finish, two aluminium end panels and a good EMV transmission performance rating suitable for the insertion of PCBs (max. 1,5mm) through guiding grooves

Specifications

manufacturer
Manufacturer's name 1455J1201
Colour clear anod.
A [mm] 120
Width [mm] 78
C [mm] 27
B1 [mm] 81,13
C1 [mm] 30,13
A1 [mm] 126
Data Sheet

Unit price

14,99 €

Stock: 116
Further delivery:
CW 43/2024
