MUGE 246

Hammond diecast extruded aluminium enclosure series 1455

  • sturdy enclosures made of aluminium
  • with an anodised extruded profile and a good EMC transmission performance rating
  • end panels made of ABS
  • suitable for PCB mounting (max. strength 1,5mm)

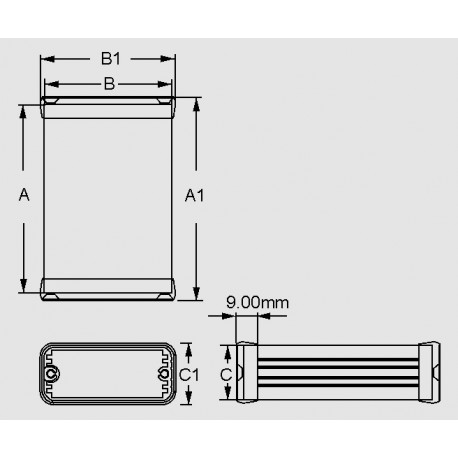

dimensions 1455C bis _T

MUGE 246

29103 MUGE 246 1455Q2202 1455Q2202 Hammond diecast extruded aluminium enclosure series 1455. sturdy enclosures made of aluminium with an anodised extruded profile and a good EMC transmission performance rating end panels made of ABS suitable for PCB mounting (max. strength 1,5mm)

Specifications

manufacturer
Manufacturer's name 1455Q2202
Colour black anod.
A [mm] 220
Width [mm] 125
C [mm] 51,5
B1 [mm] 128
C1 [mm] 54,5
A1 [mm] 226
Data Sheet

Unit price

23,79 €

Stock: 23
Further delivery:
CW 26/2024
