MUGE 248

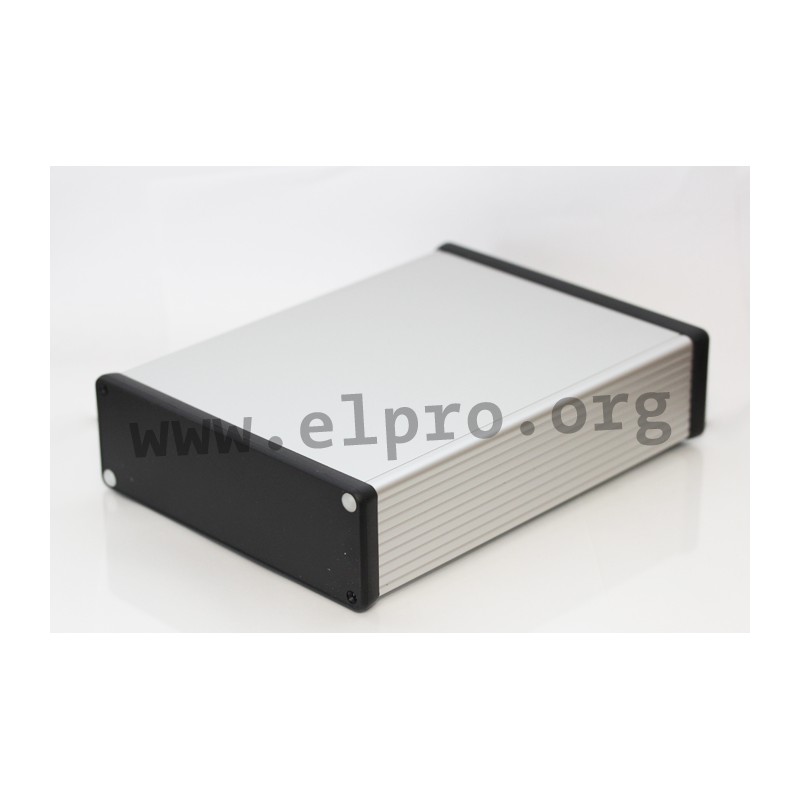

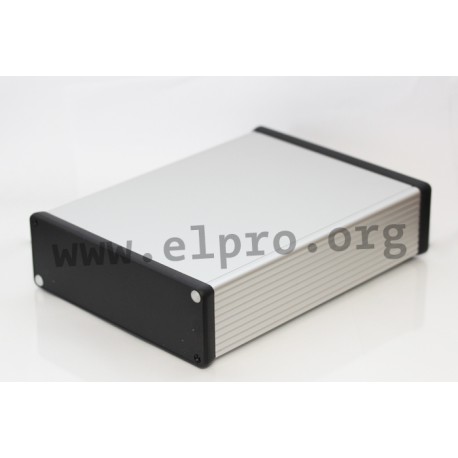

Hammond diecast extruded aluminium enclosure series 1455

  • sturdy enclosures made of aluminium
  • with an anodised extruded profile and a good EMC transmission performance rating
  • end panels made of ABS
  • suitable for PCB mounting (max. strength 1,5mm)
MUGE 248

MUGE 248

29113 MUGE 248 1455T2202 1455T2202 Hammond diecast extruded aluminium enclosure series 1455. sturdy enclosures made of aluminium with an anodised extruded profile and a good EMC transmission performance rating end panels made of ABS suitable for PCB mounting (max. strength 1,5mm)

Specifications

manufacturer
Manufacturer's name 1455T2202
Colour clear anod.

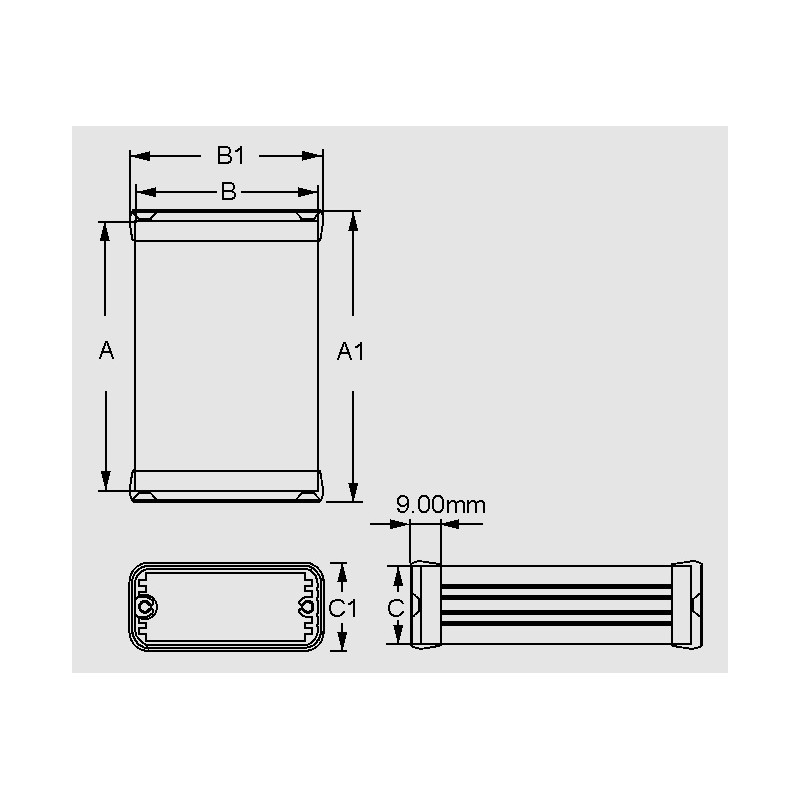

A [mm] 220
Width [mm] 165
C [mm] 51,5
B1 [mm] 168
C1 [mm] 55,6
A1 [mm] 226
Data Sheet

Unit price

29,79 €

Stock: 20
Further delivery:
CW 23/2024
