717009-09

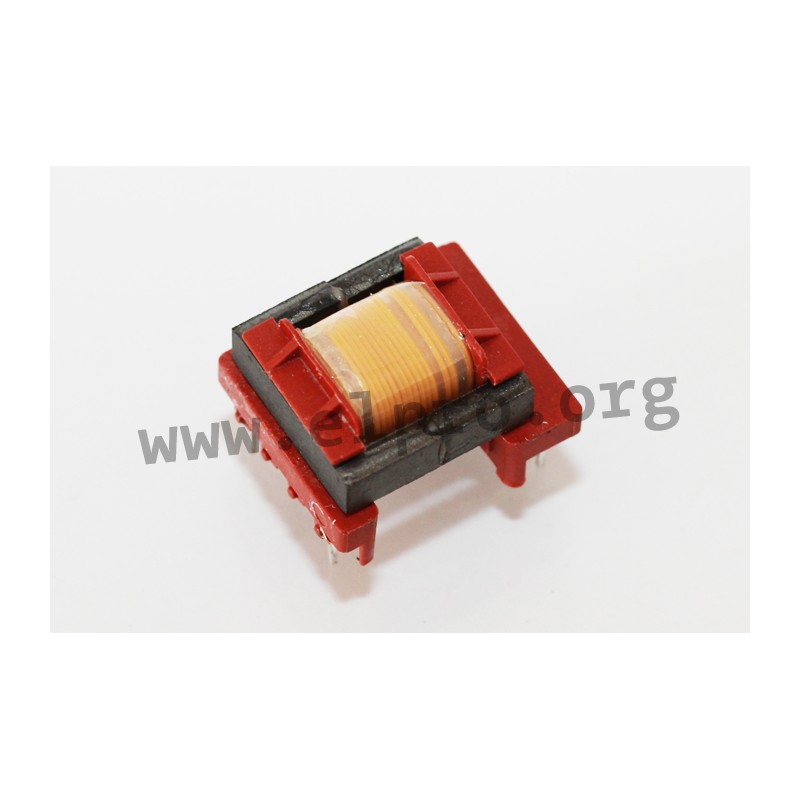

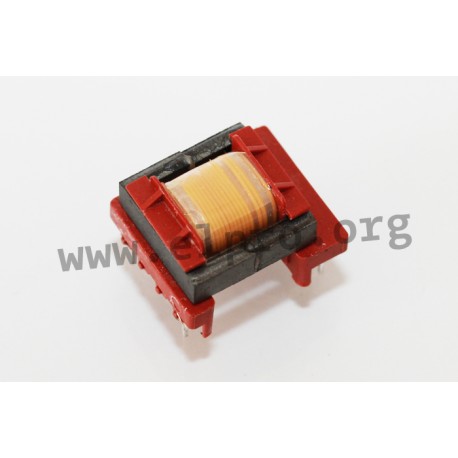

switch mode power transformers TinySwitch® by Hartu

• the converter uses the principle of energy storage to transfer voltage from the input to the output in power transformer technology for this TinySwitch® series.
• reinforced insulation to secure the requirements of EN61558-2
• optimized noise design
• low capacity primary winding for short switching times and high efficiency



• high quality power ferrite for low iron loss
• outputs can be switched in row or parallel
• input voltage range: 85...265V
• climatic category: 40/110/21

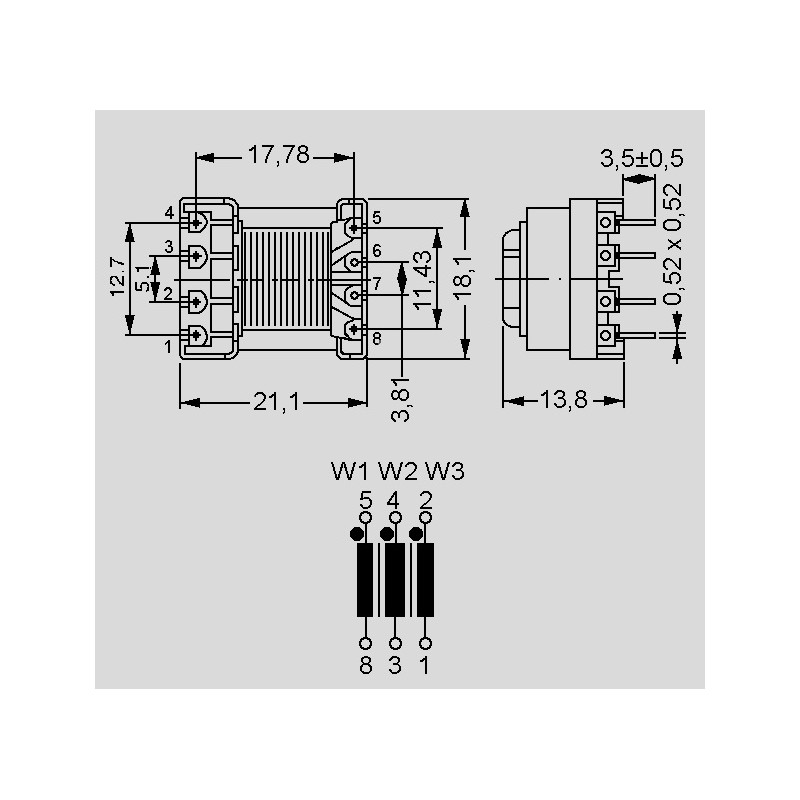

• test voltage W1 against W2 and W3 (50Hz/2s): 3750V
• by Hartu


717009-09

43275 717009-09 717009-09 switch mode power transformers TinySwitch® by Hartu. • the converter uses the principle of energy storage to transfer voltage from the input to the output in power transformer technology for this TinySwitch® series.• reinforced insulation to secure the requirements of EN61558-2• optimized noise design• low capacity primary winding for short switching times and high efficiency • high quality power ferrite for low iron loss• outputs can be switched in row or parallel• input voltage range: 85...265V• climatic category: 40/110/21• test voltage W1 against W2 and W3 (50Hz/2s): 3750V• by Hartu

Specifications

manufacturer
Manufacturer's name 717009-09
Output voltage [V] 12/24
For TNY 264
Nominal capacity [VA] 4
Inductance, no load [mH] 1,63

Unit price

0,434 €

Stock: 1076
Further delivery:
CW 34/2024

Minimum order quantity 8 units or
multiples of 8.
