> Passive elements>Inductors>Noise suppression chokes>Hartu noise suppression chokes, open mount, for dimmer circuits, HD series>HD 1,1 mH/6,0 A

Manufacturers

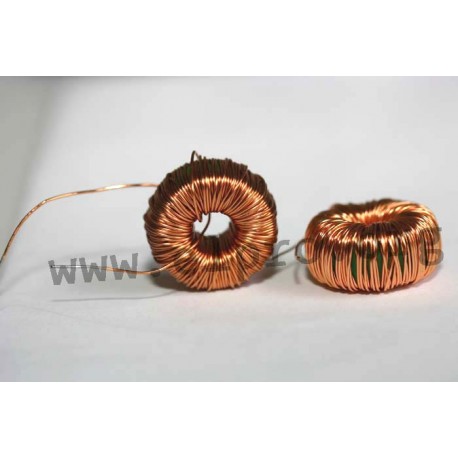

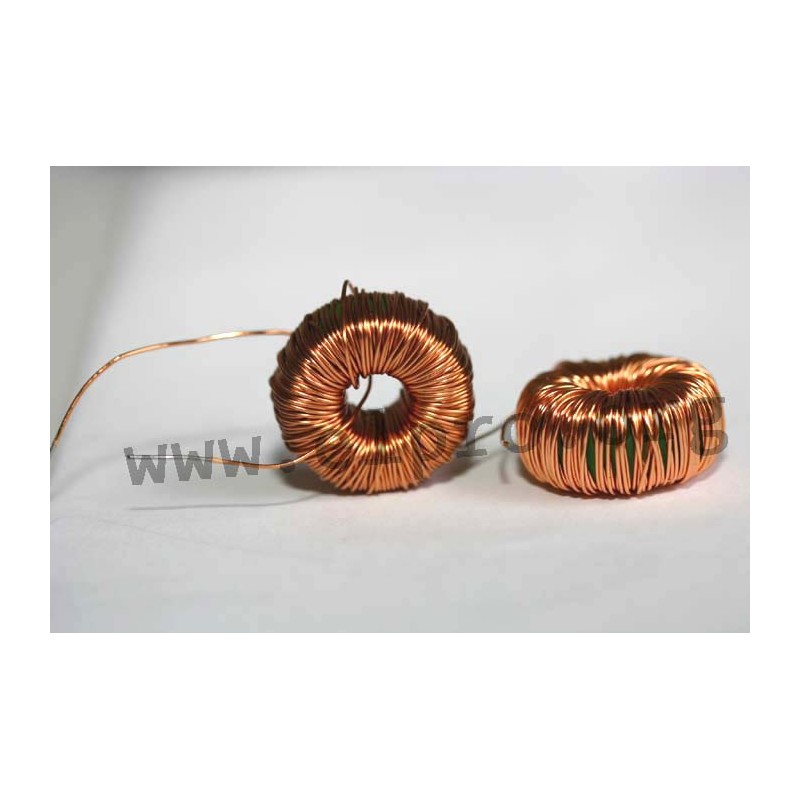

HD 1,1 mH/6,0 A

suppression chokes with VDE

* open mount
* wound on hybrid non linear metal power
* high performance and long-term stability
* very low acoustic noise emission level
* high working reliability with given load
* in accordance with EN 60938-2

HD

HD 1,1 mH/6,0 A

6423 HD 1,1 mH/6,0 A 232100-01 232100-01 suppression chokes with VDE. * open mount* wound on hybrid non linear metal power* high performance and long-term stability* very low acoustic noise emission level* high working reliability with given load* in accordance with EN 60938-2

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 232100-01
Rated current [mA] 6000
Height [mm] 21
Internal resistance [mΩ] 90
Effective attenuation [dB] 54
Minimum load [W] 150
Recommended capacitors [nF] 220
Effective inductance [mH] 2,5
Rated inductance [mH] 1,1
Outer diameter [mm] 42
Heating at 40°C ambient temperature [K] 58
Inner diameter [mm] 16

Unit price

5,09 €

Stock: 1

Minimum order quantity 1 unit or multiples of 6 plus 0 to 1 .
