> Semiconductors>Diodes>High voltage diodes>GP 02-40

Manufacturers

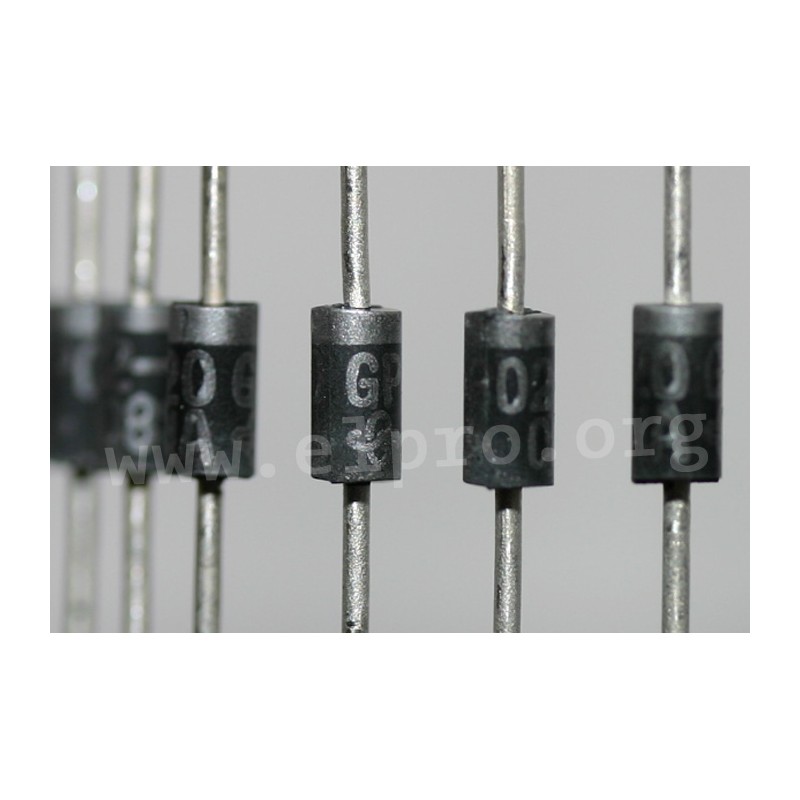

GP 02-40

high voltage diodes

* taped
* plastic conforms to UL94V-0
* solder-plated terminals, solderable per J-STD-002B and JESD22-B102D
* max. solderability 260°C/40s
* operating temperature range: -65...+175°C
GP 02-40

GP 02-40

30807 GP 02-40 GP02-40-E3/54 GP02-40-E3/54 high voltage diodes. * taped* plastic conforms to UL94V-0* solder-plated terminals, solderable per J-STD-002B and JESD22-B102D* max. solderability 260°C/40s* operating temperature range: -65...+175°C

Specifications

manufacturer
Manufacturer's name GP02-40-E3/54
Case DO41
Reverse current [A] 5
(Max.) peak recurrent reverse voltage [V] 4000
Forward voltage [V] 3
(Max.) average forward (rectified) current [A] 0,25
Data Sheet

Unit price

0,237 €

Stock: 9650

Minimum order quantity 50 units or
multiples of 50.
