> Passive elements>Laboratory and measuring equipment>Measuring leads, 4mm>Hirschmann safety measuring leads, 2 connectors, CAT III, 1mm², 16A, MLS GG series>MLS GG 25/1 schwarz

Manufacturers

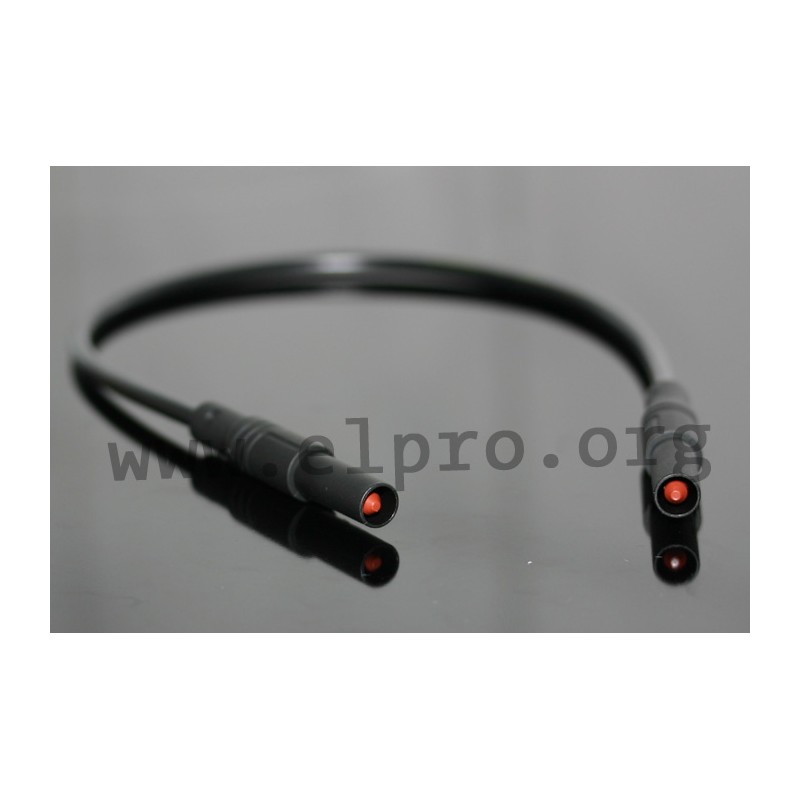

MLS GG 25/1 schwarz

measuring leads, 4mm safety system

* by Hirschmann
* contact-protected, IEC61010
* at either end 4 mm diameter safety connector with straight outlet and integrated kink protection
* highly flexible, double insulated stranded lead
* shatter-proof grip sleeve and lead
* built in colour indicator for easy indetification of insulation damages
* contact: spring-loaded pin
* cable type: LEH-XY
* lead cross-section: 1mm²
* lead design: 259x0,07
* cable material: PVC (UL 94 HB)
* rated voltage: 1000V AC/DC
* rated current: 16A
* contact material: copper-beryllium, nickel-plated
* housing: polyamide (UL 94 V-2)
* operating temperature range: -15...+70°C
* resistance, MLS GG 25/1: 8,5mΩ
* resistance, MLS GG 100/1: 22mΩ

MLS GG 25/1 schwarz

MLS GG 25/1 schwarz

31762 MLS GG 25/1 schwarz MLS GG 25/1 schwarz measuring leads, 4mm safety system. * by Hirschmann* contact-protected, IEC61010* at either end 4 mm diameter safety connector with straight outlet and integrated kink protection* highly flexible, double insulated stranded lead* shatter-proof grip sleeve and lead* built in colour indicator for easy indetification of insulation damages* contact: spring-loaded pin* cable type: LEH-XY* lead cross-section: 1mm²* lead design: 259x0,07* cable material: PVC (UL 94 HB)* rated voltage: 1000V AC/DC* rated current: 16A* contact material: copper-beryllium, nickel-plated* housing: polyamide (UL 94 V-2)* operating temperature range: -15...+70°C* resistance, MLS GG 25/1: 8,5mΩ * resistance, MLS GG 100/1: 22mΩ

Discontinued items. Only remainder of stock available.

Specifications

Colour black
Cable length [cm] 25
Data Sheet

Unit price

3,69 €

Stock: 1
