PMOF-9745 P-42UQ

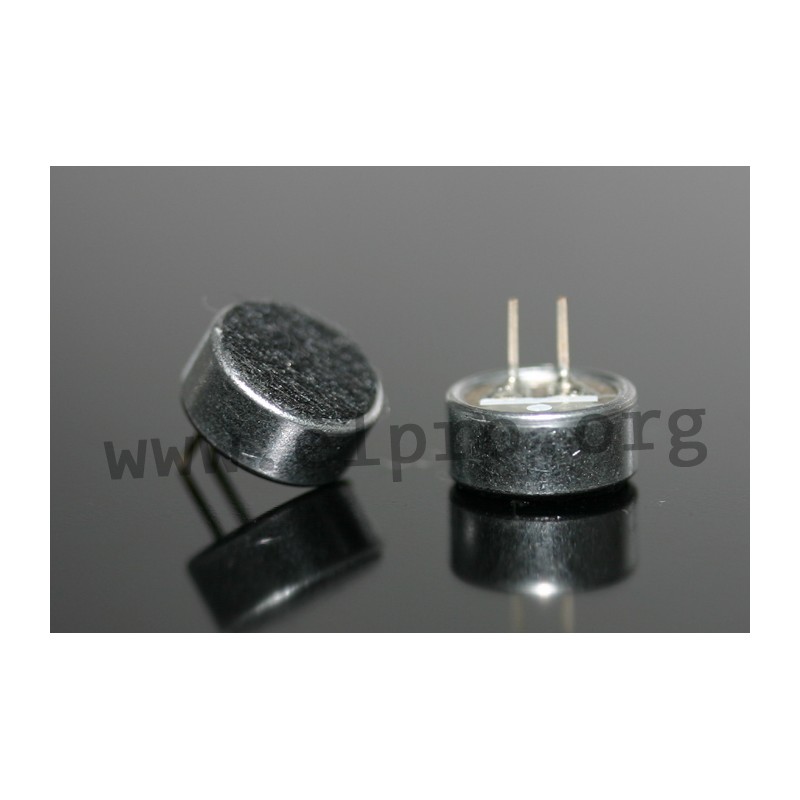

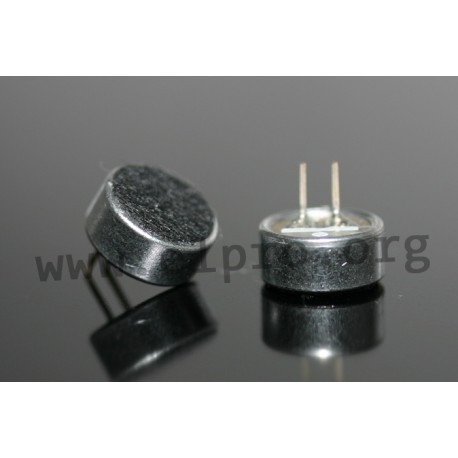

Hitpoint electret condenser microphone series PMOF97

  • microphone capsules with a diameter of 9,7mm
  • with an omnidirectional characteristic
  • available in various mounting types (SMD/wire/PC)
  • impedance: 2,2kOhm
  • supply voltage: 1 to 10V

PMOF-9745 P-42UQ

29811 PMOF-9745 P-42UQ PMOF-9745P-42UQ PMOF-9745P-42UQ Hitpoint electret condenser microphone series PMOF97. microphone capsules with a diameter of 9,7mm with an omnidirectional characteristic available in various mounting types (SMD/wire/PC) impedance: 2,2kOhm supply voltage: 1 to 10V

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PMOF-9745P-42UQ
0dB = 1V/µBar, 1kHz [dB] -62
0dB = 1V/Pa, 1kHz [dB] -42
Data Sheet

Unit price

0,25 €

Stock: 10
