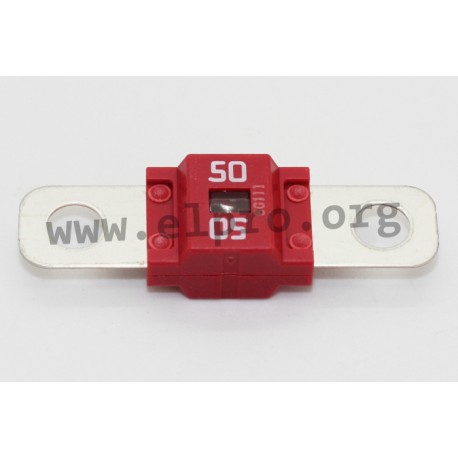

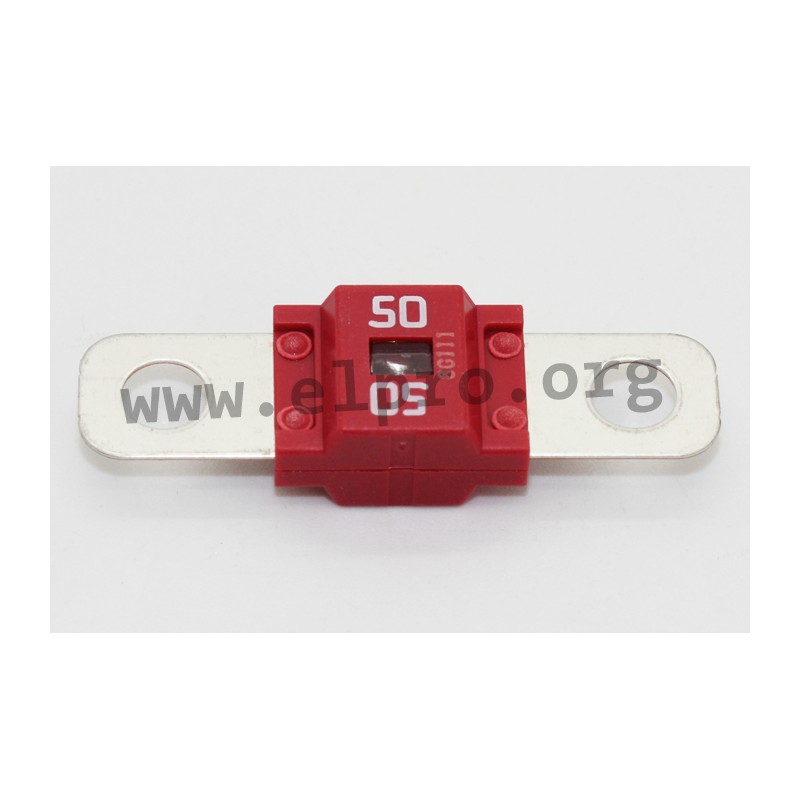

MDP 50 A

iMaXX automotive fuse series MDP

  • bolt-on style automotive fuses in a colour coded, heat and chemical resistant PA6T housing

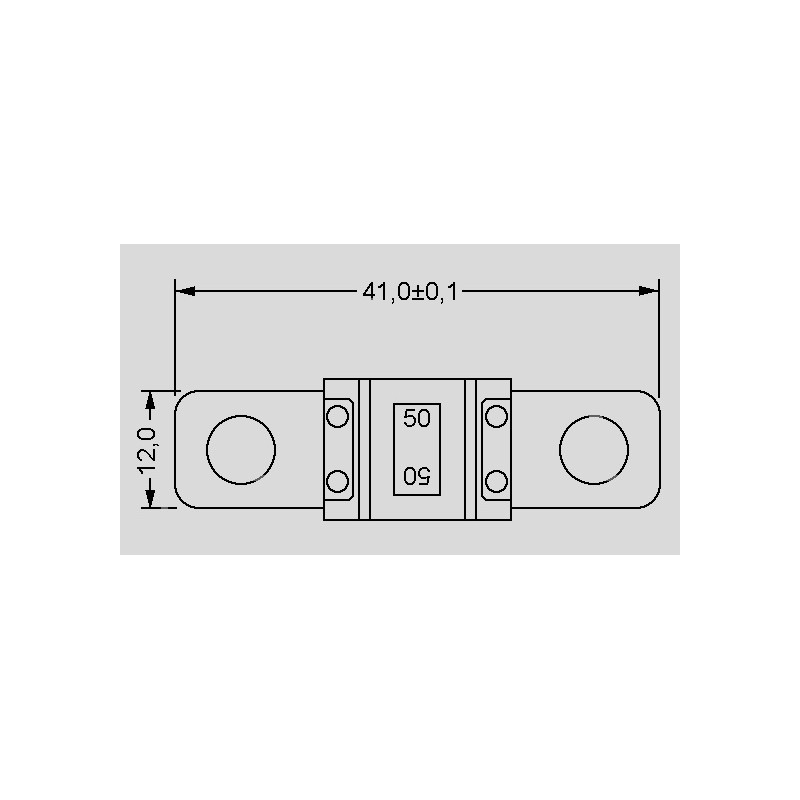

  • with a maximal torque of 4,5Nm ±1Nm and M5 connection holes (30mm gap)
  • viewing window on top of the case
  • comply with ISO 8820 and JASO D612
  • rated voltage: 58V

MDP 50 A

44726 MDP 50 A MDP050 MDP050 iMaXX automotive fuse series MDP . bolt-on style automotive fuses in a colour coded, heat and chemical resistant PA6T housing with a maximal torque of 4,5Nm ±1Nm and M5 connection holes (30mm gap) viewing window on top of the case  comply with ISO 8820 and JASO D612 rated voltage: 58V

Specifications

manufacturer
Manufacturer's name MDP050
Colour red
Rated current [A] 50
Data Sheet

Unit price

0,73 €

Stock: 409
Further delivery:
CW 16/2024

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
