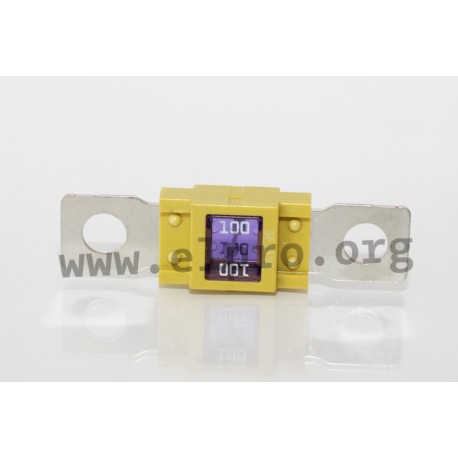

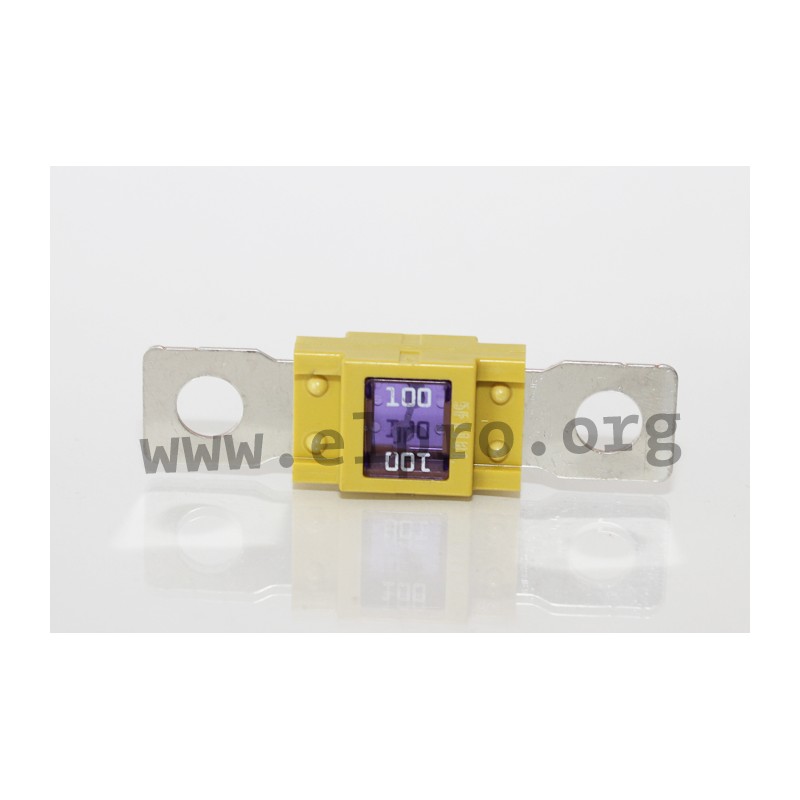

MGP 100 A

automotive fuses MGP by iMaXX

* bolt-on
* rated voltage 32V
* element visibility, partial transparent housing
* thermoplastic (UL 94-V0), heat resistant, color coded housing

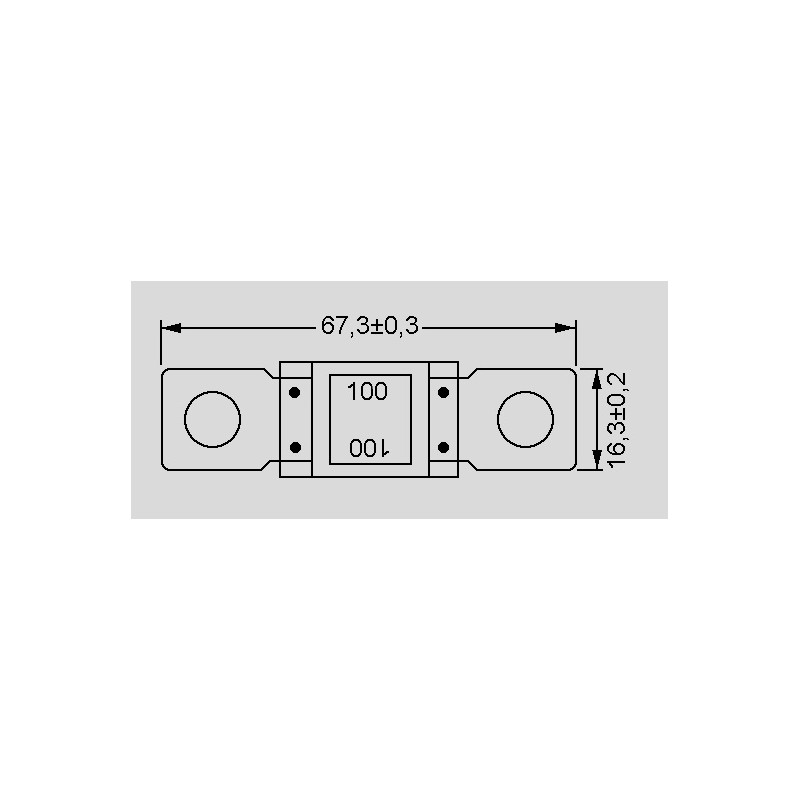

* M8 connection holes, spaced 51mm
* breaking capacity of 2000A at 32V DC
* maximum torque 12Nm ±1Nm
* by iMaXX

MGP 100 A

44734 MGP 100 A MGP100 MGP100 automotive fuses MGP by iMaXX. * bolt-on* rated voltage 32V* element visibility, partial transparent housing* thermoplastic (UL 94-V0), heat resistant, color coded housing* M8 connection holes, spaced 51mm* breaking capacity of 2000A at 32V DC* maximum torque 12Nm ±1Nm* by iMaXX

Specifications

manufacturer
Manufacturer's name MGP100
Colour yellow
Rated current [A] 100
Data Sheet

Unit price

1,93 €

Stock: 199
Further delivery:
CW 16/2024

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
