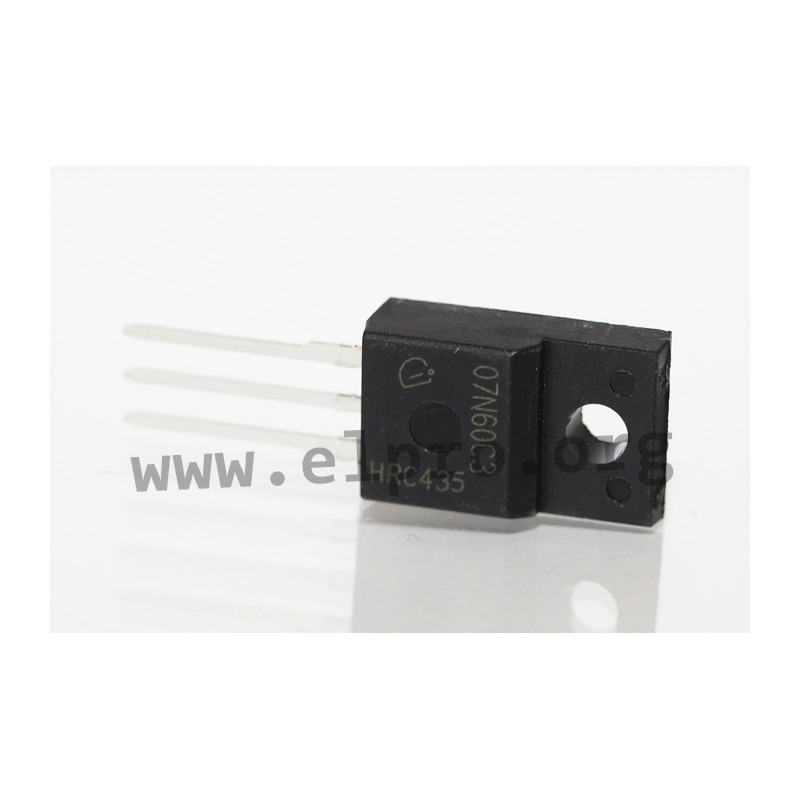

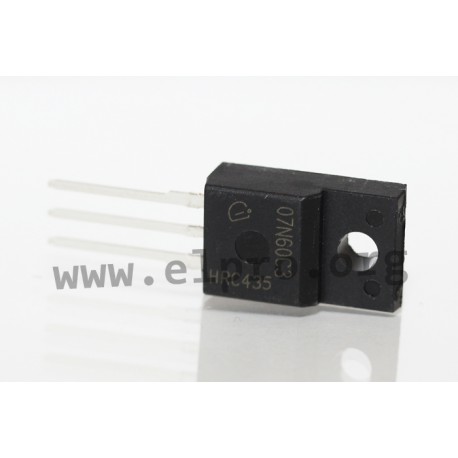

SPA 08 N 80 C3

Infineon MOSFET series SPA and SPP

  • power MOSFETs
  • in a TO220- resp. TO220-Fullpak housing
  • CoolMOS™ / SIPMOS™
TO220-Fullpack

SPA 08 N 80 C3

38399 SPA 08 N 80 C3 SPA08N80C3XKSA1 SPA08N80C3XKSA1 Infineon MOSFET series SPA and SPP. power MOSFETs in a TO220- resp. TO220-Fullpak housing CoolMOS™ / SIPMOS™

Specifications

manufacturer
Manufacturer's name SPA08N80C3XKSA1

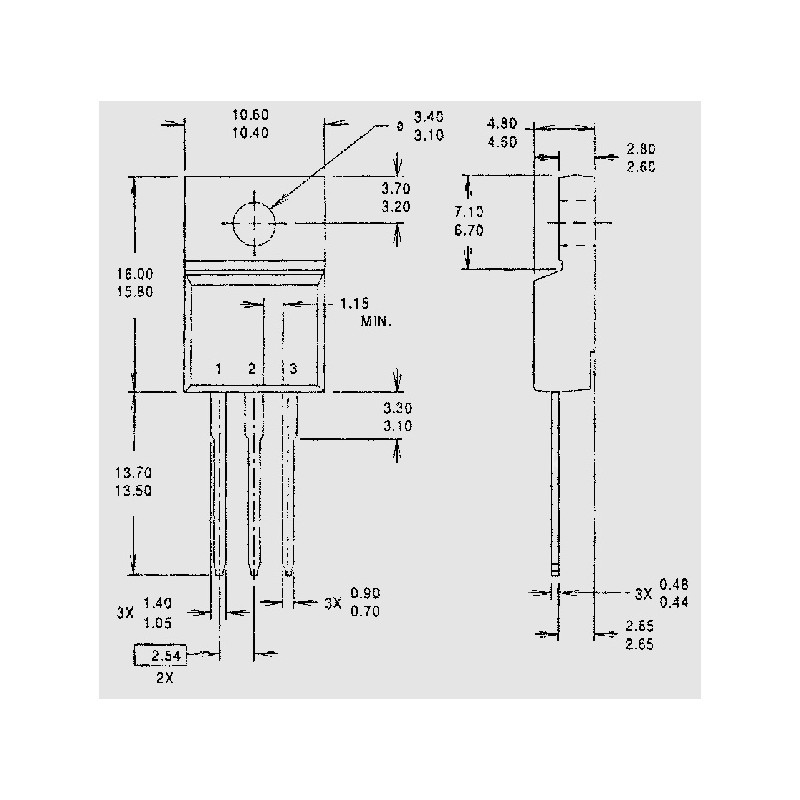

Case TO220-Fullpak
Max. drain-source voltage [V] 800
Max. drain-source on-resistance [Ω] 0,65
Turn-on delay time [ns] 25
Max. continuous drain current TC = 25°C [A] 8
Min. gate threshold voltage [V] 2,1
Turn-off delay time [ns] 65
Data Sheet

Unit price

2,49 €

Stock: 756
Further delivery:
CW 08/2025

Minimum order quantity 5 units or
multiples of 5.
