Manufacturers

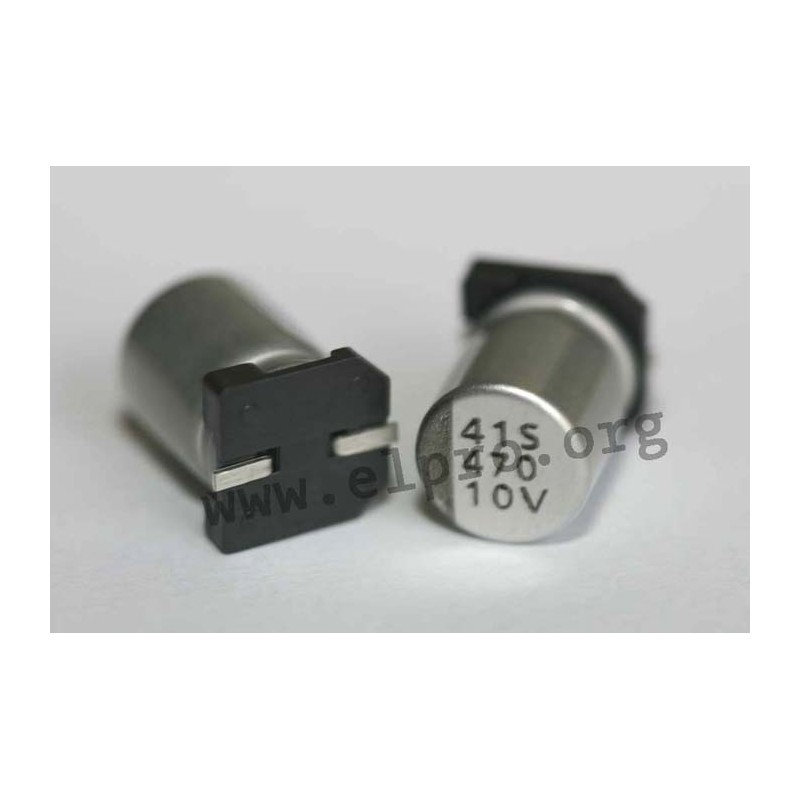

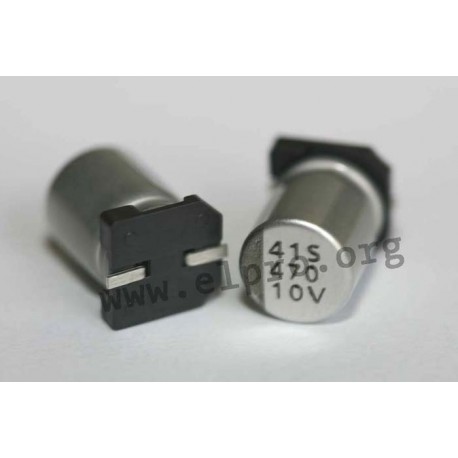

E-SMD 10 V 4700 µF

SMD package

* SMD
* rated voltage: 10...100V DC
* tolerance: 20%
* temperature range: -40...+85°C
* life expectancy (at 85°C): 2000h

E-SMD 10 V 4700 µF

27862 E-SMD 10 V 4700 µF 10SS472MLC16X16.5EC 10SS472MLC16X16.5EC SMD package. * SMD* rated voltage: 10...100V DC* tolerance: 20%* temperature range: -40...+85°C* life expectancy (at 85°C): 2000h

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 10SS472MLC16...
Reverse current [A] 1,45
Loss factor at 120Hz, 25°C 20
Nominal voltage [V] 10
Capacity [µF] 4700
D x L [mm] 16x16,5
Data Sheet

Unit price

5,69 €

Volume discounts

Quantity Unit price
25 + 0,846 €

Stock: 149
