K 2200 pF X1/Y1 RM 12,5

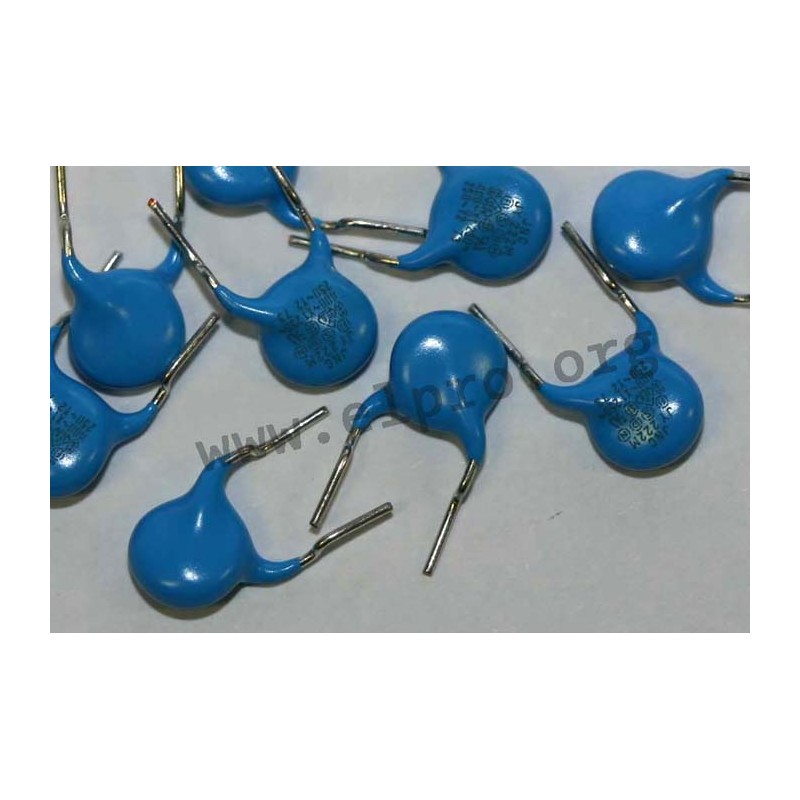

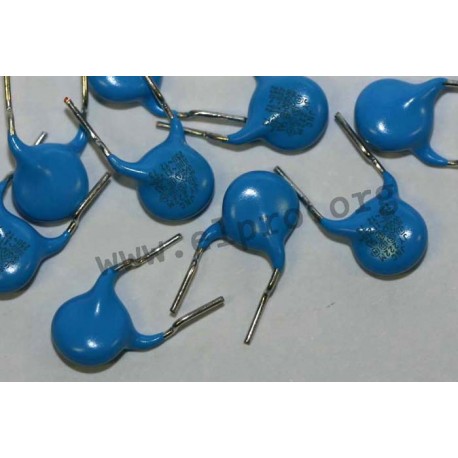

ceramic suppression capacitors X1/Y1

• minimum reinforced insulation: 0.4mm
• coated with flame-retardant epoxy resin conforming to UL94-0
• by Jya-Nay
• rated voltage (50/60Hz)
X1: 440V AC (UL/CSA 250V AC)
Y1: 250V AC
• temperature range: up -25 to +85°C
• test voltage (1min): 4000V AC
• insulation restistance: 10GΩ
• max. dissipation factor tan δ (1kHz, 1rms, 25°C): ≤2.5%

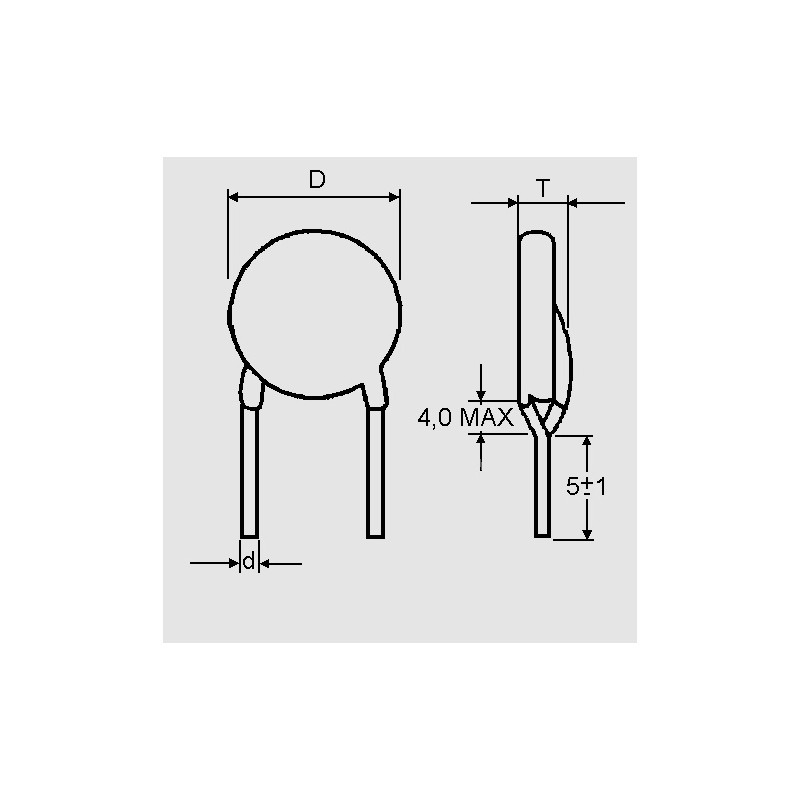

• max. body thickness (T): 8mm
• lead wire diameter (d): 0.65±0.05 mm

X1/Y1

K 2200 pF X1/Y1 RM 12,5

11422 K 2200 pF X1/Y1 RM 12,5 JN12E222MY12N+DL25MM JN12E222MY12N+DL25MM ceramic suppression capacitors X1/Y1 . • minimum reinforced insulation: 0.4mm• coated with flame-retardant epoxy resin conforming to UL94-0• by Jya-Nay• rated voltage (50/60Hz) X1: 440V AC (UL/CSA 250V AC)Y1: 250V AC• temperature range: up -25 to +85°C• test voltage (1min): 4000V AC• insulation restistance: 10GΩ• max. dissipation factor tan δ (1kHz, 1rms, 25°C): ≤2.5%• max. body thickness (T): 8mm• lead wire diameter (d): 0.65±0.05 mm

Specifications

manufacturer
Manufacturer's name JN12E222MY12...
Design loose
Dmax. [mm] 12
Material Y5U
Pitch [mm] 12,5
Tolerance [%] +20/-55
Capacity [pF] 2200
Data Sheet

Unit price

0,133 €

Stock: 4050
Next incoming goods:
CW 19/2024
2000 units

Further delivery:
CW 37/2024

Minimum order quantity 100 units or
multiples of 100.
