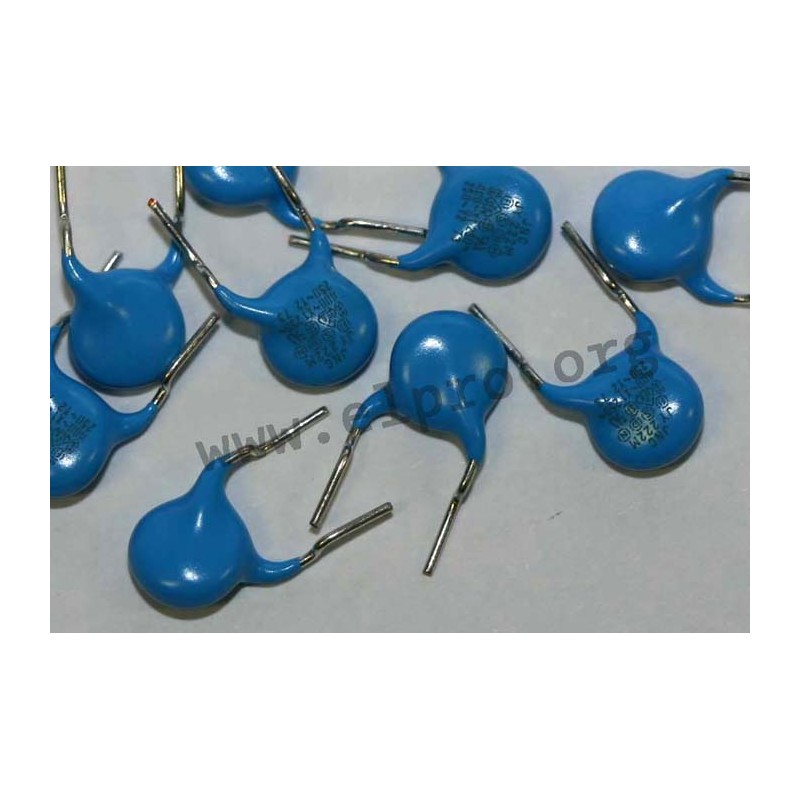

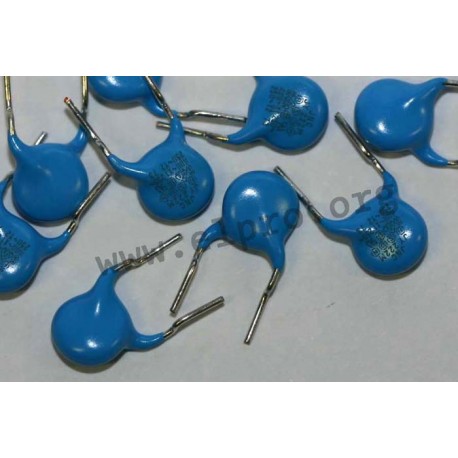

K 2200 pF X1/Y2 RM 7,5

ceramic suppression capacitors X1/Y2

• minimum reinforced insulation: 0.4mm
• coated with flame-retardant epoxy resin conforming to UL94-0
• by Jya-Nay
• rated voltage (50/60Hz)
X1: 440V AC (UL/CSA 250V AC)
Y2: 250V AC
• temperature range: up -25 to +85°C
• test voltage (1min): 2600V AC
• insulation restistance: 10GΩ
• max. dissipation factor tan δ (1kHz, 1rms, 25°C): 2.5%

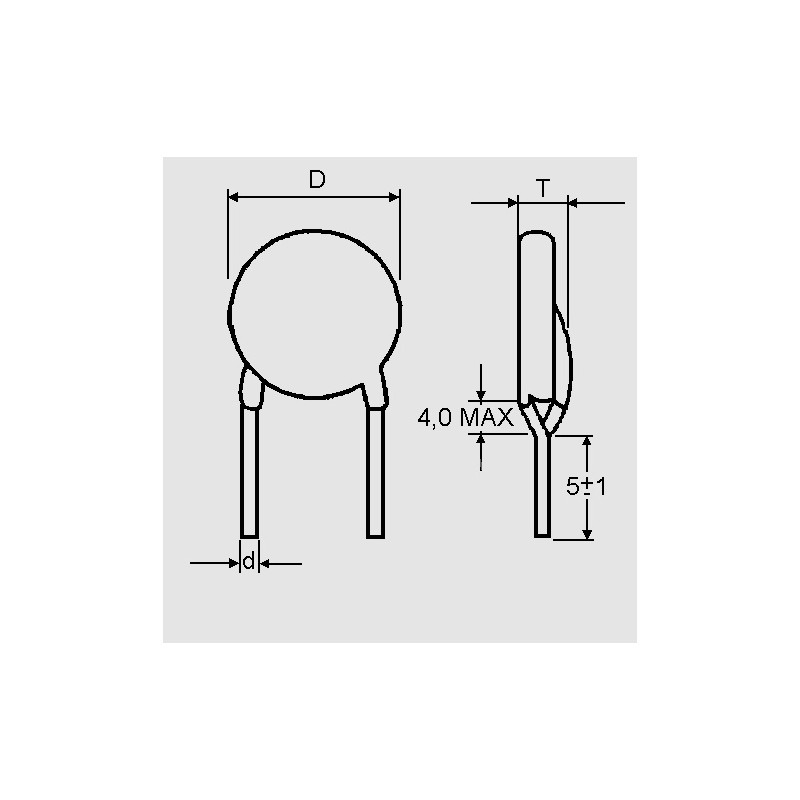

• max. body thickness (T): 8mm
• lead wire diameter (d): 0.65±0.05 mm

X1/Y2

K 2200 pF X1/Y2 RM 7,5

11423 K 2200 pF X1/Y2 RM 7,5 JY09F222MY75N+DL5MM JY09F222MY75N+DL5MM ceramic suppression capacitors X1/Y2 . • minimum reinforced insulation: 0.4mm• coated with flame-retardant epoxy resin conforming to UL94-0• by Jya-Nay• rated voltage (50/60Hz) X1: 440V AC (UL/CSA 250V AC)Y2: 250V AC• temperature range: up -25 to +85°C• test voltage (1min): 2600V AC• insulation restistance: 10GΩ• max. dissipation factor tan δ (1kHz, 1rms, 25°C): 2.5%• max. body thickness (T): 8mm• lead wire diameter (d): 0.65±0.05 mm

Specifications

manufacturer
Manufacturer's name JY09F222MY75...
Design loose
Dmax. [mm] 10
Material Y5V
Pitch [mm] 7,5
Tolerance [%] -30/+80
Capacity [pF] 2200
Data Sheet

Unit price

0,117 €

Stock: 7801
Next incoming goods:
CW 29/2024
12000 units

Further delivery:
CW 37/2024

Minimum order quantity 1 unit or multiples of 100 plus 0 to 1 .
