781 4,8 schwarz

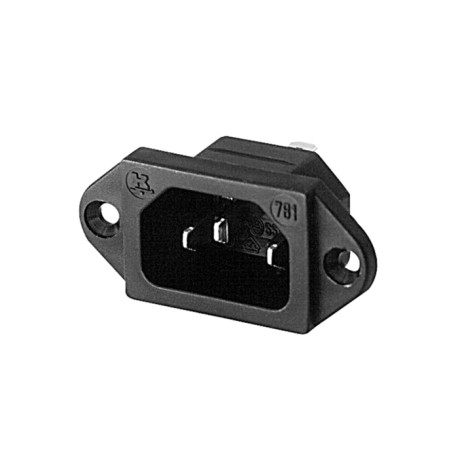

Kaiser Built-in cold appliance plug series 781

Built-in cold appliance plugs made of Polyamid (PA) 6 and with snap-in or screw (781/SW) fastening. These black plugs have a brass input and a straight alignment. We offer the following types of this Kaiser series: 781/48/SW, 781/63/SW, and 781/SW.

  • rated voltage: 250V AC
  • rated current: 10A
  • dimensions: 48,5x29,5x23mm
  • weight: 10g, resp. 14g (781/SW)
  • faston terminal: 6,3mm (781/63/SW) or 4,8mm (781/48/SW)
  • operating temperature: -5 to 40°C
781/48/SW, Kaiser Built-in cold appliance plug, 70°C, straight, 781 series

781 4,8 schwarz

30171 781 4,8 schwarz 781/48/SW 781/48/SW Kaiser Built-in cold appliance plug series 781. Built-in cold appliance plugs made of Polyamid (PA) 6 and with snap-in or screw (781/SW) fastening. These black plugs have a brass input and a straight alignment. We offer the following types of this Kaiser series: 781/48/SW, 781/63/SW, and 781/SW. rated voltage: 250V AC rated current: 10A dimensions: 48,5x29,5x23mm weight: 10g, resp. 14g (781/SW) faston terminal: 6,3mm (781/63/SW) or 4,8mm (781/48/SW) operating temperature: -5 to 40°C

Specifications

manufacturer
Manufacturer's name 781/48/SW
Data Sheet

Unit price

0,824 €

Stock: 0
Next incoming goods:
CW 51/2025
160 units

Further delivery:
CW 05/2026

Minimum order quantity 10 units or
multiples of 10.
