> Passive elements>Connectors>IEC connectors>Kaiser Built-in cold appliance plug, 70°C, straight, 781 series

Manufacturers

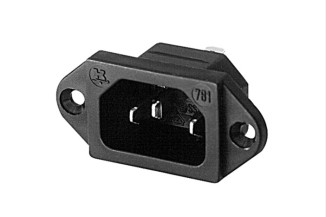

Kaiser Built-in cold appliance plug series 781

Built-in cold appliance plugs made of Polyamid (PA) 6 and with snap-in or screw (781/SW) fastening. These black plugs have a brass input and a straight alignment. We offer the following types of this ...

Kaiser Built-in cold appliance plug series 781

Built-in cold appliance plugs made of Polyamid (PA) 6 and with snap-in or screw (781/SW) fastening. These black plugs have a brass input and a straight alignment. We offer the following types of this Kaiser series: 781/48/SW, 781/63/SW, and 781/SW.

  • rated voltage: 250V AC
  • rated current: 10A
  • dimensions: 48,5x29,5x23mm
  • weight: 10g, resp. 14g (781/SW)
  • faston terminal: 6,3mm (781/63/SW) or 4,8mm (781/48/SW)
  • operating temperature: -5 to 40°C
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Kaiser
    781/63/SW, Kaiser Built-in cold appliance plug, 70°C, straight, 781 series
    0,786 €
    253691 781_63_sw 781/63/SW 781/63/SW
    0,786 €

    More
    Stock: 90
  • Kaiser
    781/SW, Kaiser Built-in cold appliance plug, 70°C, straight, 781 series
    1,03 €
    253692 781sw 781/SW 781/SW
    1,03 €

    More
    Stock: 50
  • Kaiser
    781/48/SW, Kaiser Built-in cold appliance plug, 70°C, straight, 781 series
    0,824 €
    30171 781 4,8 schwarz 781/48/SW 781/48/SW
    0,824 €

    More
    Stock: 0
Showing 1 - 3 of 3 products
