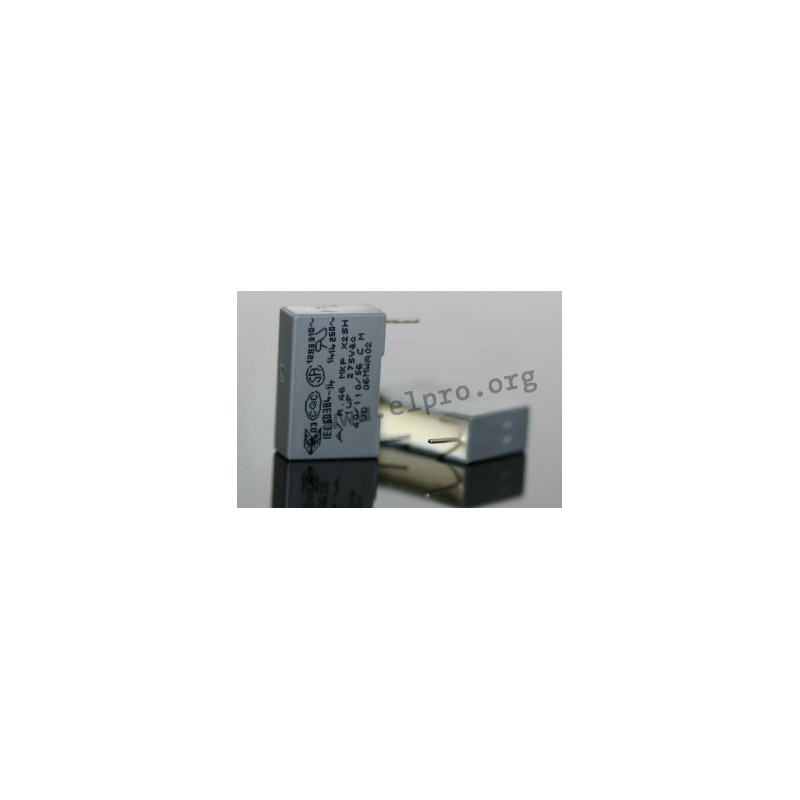

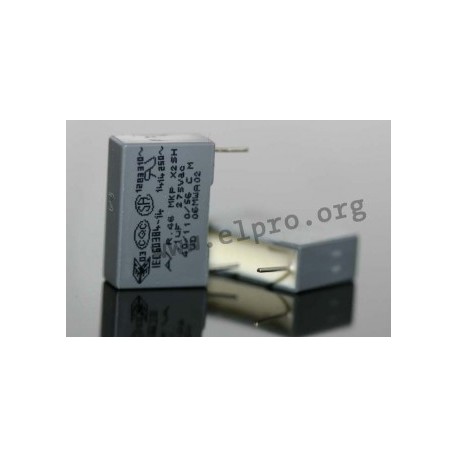

MKP 275V 0,047µF RM15 X2

pitch: 15...37.5mm

* dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
* box material is solvent resistant and flame retardant (UL94V-0), no impregnation
* low attenuation
* low dissipation factor (tan d)
* high pulse strength (du/dt)
* high insulation resistance
MKP class X2 View larger

MKP 275V 0,047µF RM15 X2

28079 MKP 275V 0,047µF RM15 X2 R46KI24700001M R46KI24700001M pitch: 15...37.5mm. * dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum* box material is solvent resistant and flame retardant (UL94V-0), no impregnation* low attenuation* low dissipation factor (tan d)* high pulse strength (du/dt)* high insulation resistance

Data sheet

manufacturer
manufacturer's name R46KI24700001M
nominal voltage [V] 275
pitch [mm] 15
tolerance [%] 20
capacity [pF] 47000

Download

Data Sheet

1,38 €

Volume discounts

50 pcs. / 0,088 €

stock: 30178
Next incoming:
CW:15/2021
6000 pieces
