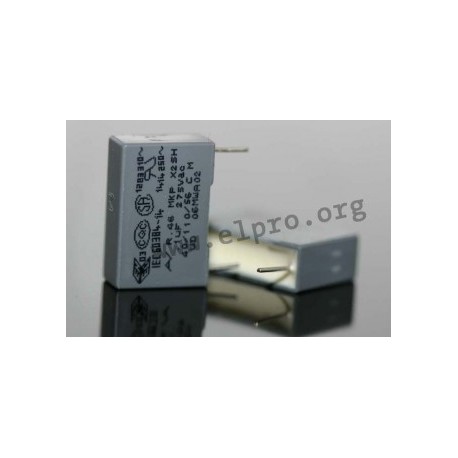

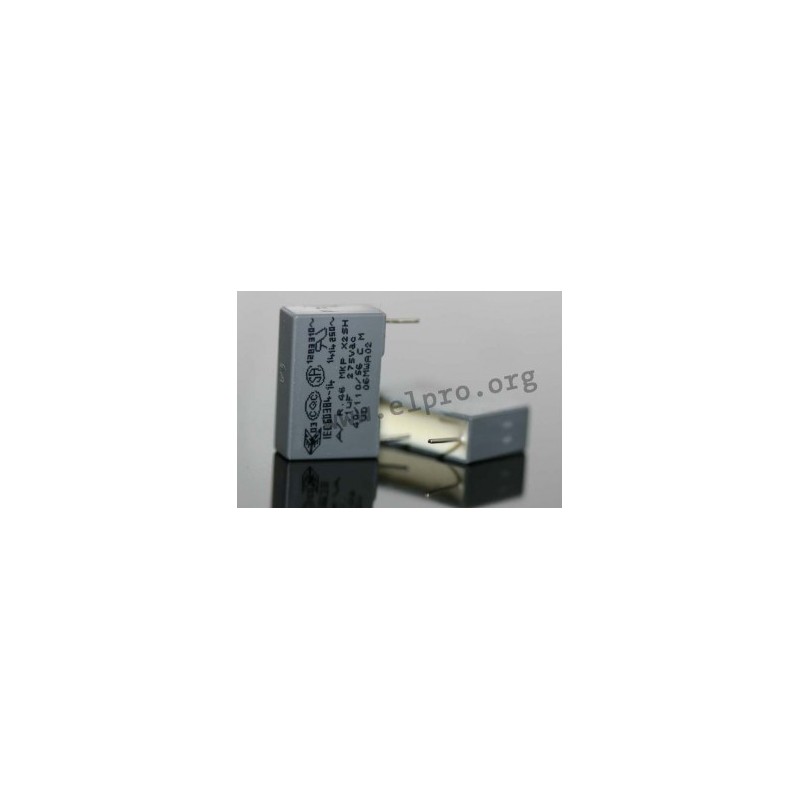

MKP 275V 4,7µF RM27,5 X2

pitch: 15...37.5mm

* dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
* box material is solvent resistant and flame retardant (UL94V-0), no impregnation
* low attenuation
* low dissipation factor (tan d)
* high pulse strength (du/dt)
* high insulation resistance
MKP class X2 View larger

MKP 275V 4,7µF RM27,5 X2

28142 MKP 275V 4,7µF RM27,5 X2 R46KR447000M1M R46KR447000M1M pitch: 15...37.5mm. * dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum* box material is solvent resistant and flame retardant (UL94V-0), no impregnation* low attenuation* low dissipation factor (tan d)* high pulse strength (du/dt)* high insulation resistance

Data sheet

manufacturer
manufacturer's name R46KR447000M1M
nominal voltage [V] 275
pitch [mm] 27,5
tolerance [%] 20
capacity [pF] 4700000

Download

Data Sheet

4,79 €

Volume discounts

8 pcs. / 1,39 €

stock: 313
Next incoming:
CW:09/2021
168 pieces
