E-SMD 16V 2200µF 105°ESR

105°, low ESR, SMD housing

* low ESR
* rated voltage: 16...50V
* tolerance: 20%
* temperature range: -55...+105°C
* life expectancy (at 105°C): 1000h

E-SMD 16V 2200µF 105°ESR

27907 E-SMD 16V 2200µF 105°ESR 16LZ222MLC12.5X16EC 16LZ222MLC12.5X16EC 105°, low ESR, SMD housing. * low ESR * rated voltage: 16...50V* tolerance: 20%* temperature range: -55...+105°C* life expectancy (at 105°C): 1000h

Discontinued items. Only remainder of stock available.

Data sheet

manufacturer
manufacturer's name 16LZ222MLC12.5X16EC
reverse current [A] 0,95
impedance [mΩ] 90
loss factor at 120Hz, 25°C 16
nominal voltage [V] 16
capacity [µF] 2200

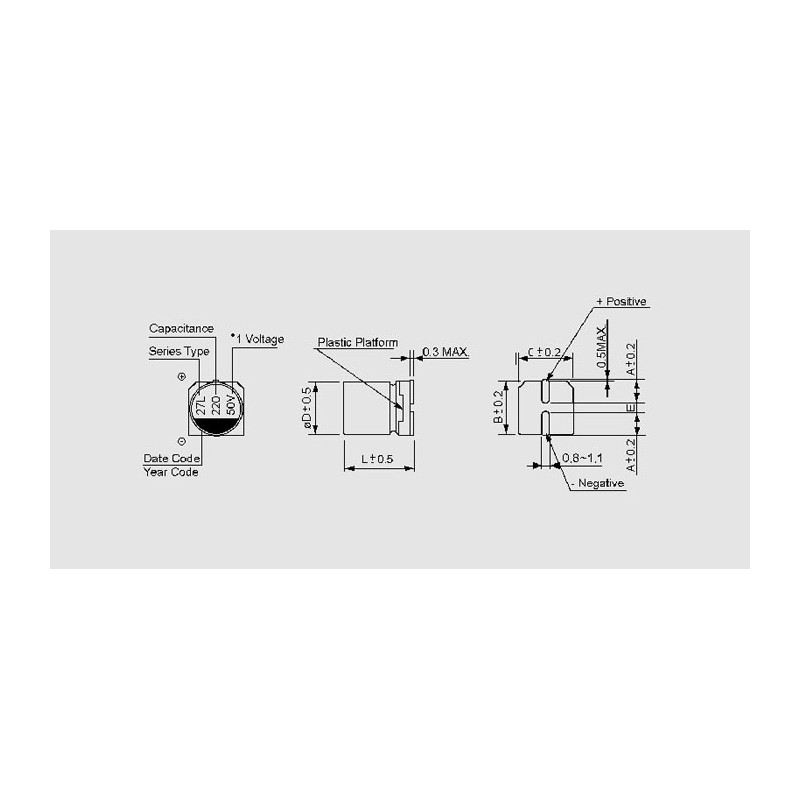

D x L [mm] 12,5x16

Download

Data Sheet

1,08 €

stock: 15
