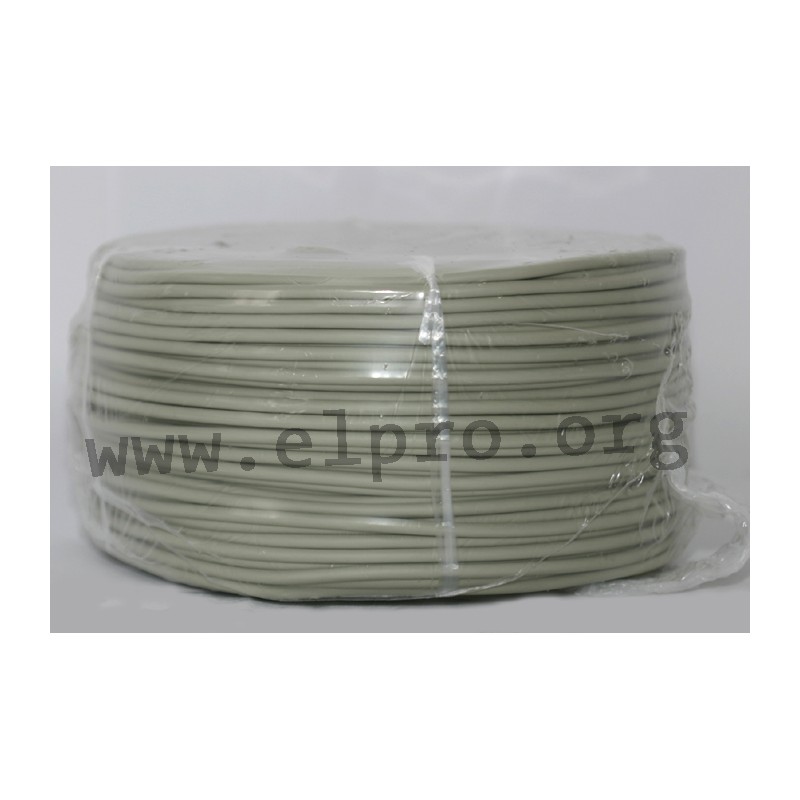

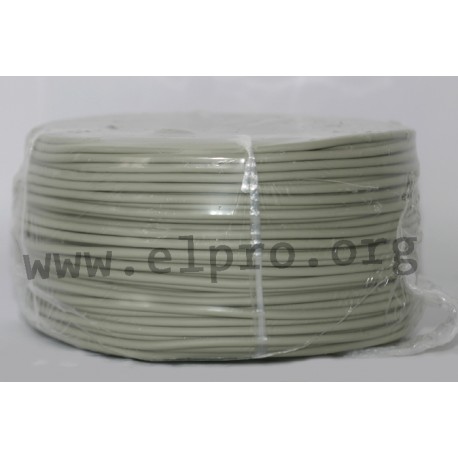

LIYY 5x0,14 grau

PVC control cables

• twisted
• unshielded
• cable cross section: 5x0,14mm²
• conductor insulation: PVC YI 2
• conductor colours: DIN 47 100
• conductor composition: 18x0.1mm
• outer jacket: PVC YM 2
• colour: grey (RAL 7032)
• flammability: flame resistant IEC332.1
• rated voltage: 300V
• test voltage: 1.2kV
• temperature range moving: -10 to +70°C
• temperature range stationary: -20 to +70°C
• insulation resistance, min.: 100MΩxkm
• conductor resistance, max.: 135Ω/km
• outerØ: 4 ±0,15mm
• 1 pc. corresponds to a 100-meter ring

LIYY 5x0,14 grau

30110 LIYY 5x0,14 grau 06070105/22 06070105/22 PVC control cables. • twisted• unshielded• cable cross section: 5x0,14mm²• conductor insulation: PVC YI 2• conductor colours: DIN 47 100• conductor composition: 18x0.1mm• outer jacket: PVC YM 2• colour: grey (RAL 7032)• flammability: flame resistant IEC332.1• rated voltage: 300V• test voltage: 1.2kV• temperature range moving: -10 to +70°C• temperature range stationary: -20 to +70°C• insulation resistance, min.: 100MΩxkm• conductor resistance, max.: 135Ω/km• outerØ: 4 ±0,15mm• 1 pc. corresponds to a 100-meter ring

Specifications

manufacturer
Manufacturer's name 06070105/22
Colour grey

Unit price

51,19 €

Stock: 37
Further delivery:
CW 22/2024
