LIY-Z 2x0,5 schwarz

PVC twin braid wires

• conductor cross-section:2x0.5mm²
• colour: black
• PVC insulated twin braid wires
• conductor welded, separable
• marking by red identity strip
• rated voltage: 50V AC, 75V DC
• test voltage: >1.5kV
• outer diameter, approx.: 1.6x3.5mm/±0.2mm
• conductor composition: 16x0.2mm
• temperature range: -5 to +105°C

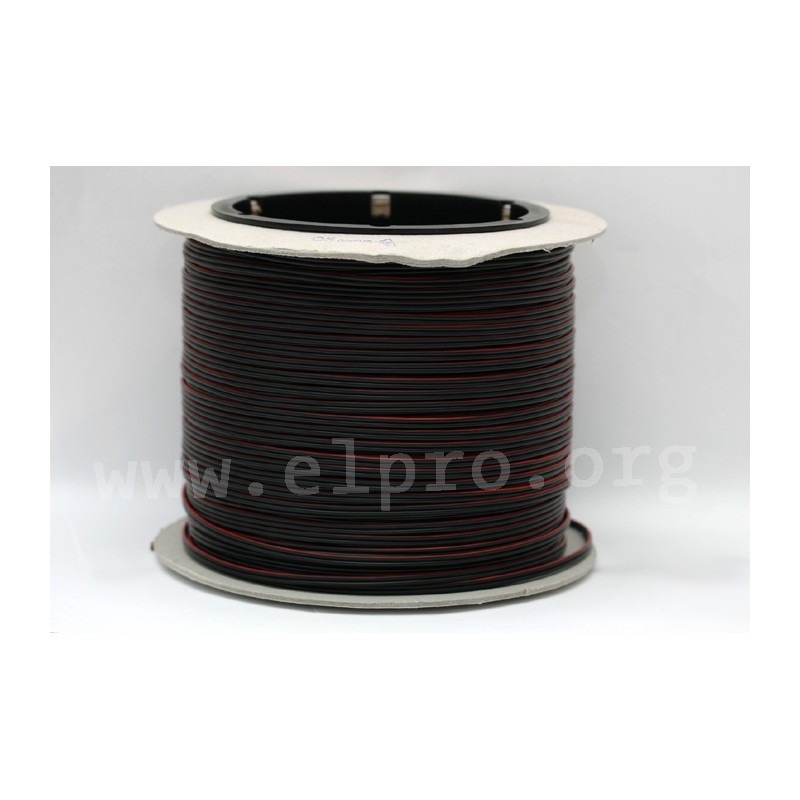

• 1 pc. corresponds to a 100-meter ring on disposable reel

LIY-Z 2x0,5

LIY-Z 2x0,5 schwarz

30098 LIY-Z 2x0,5 schwarz 05C00187/09 05C00187/09 PVC twin braid wires. • conductor cross-section:2x0.5mm²• colour: black• PVC insulated twin braid wires• conductor welded, separable• marking by red identity strip• rated voltage: 50V AC, 75V DC• test voltage: >1.5kV• outer diameter, approx.: 1.6x3.5mm/±0.2mm• conductor composition: 16x0.2mm• temperature range: -5 to +105°C• 1 pc. corresponds to a 100-meter ring on disposable reel

Specifications

manufacturer
Manufacturer's name 05C00187/09
Colour black
Cross section 2x0,5mm²

Unit price

38,89 €

Stock: 127
Further delivery:
CW 22/2024
