> Semiconductors>LED displays>7-segments, 1 digit>LiteOn 7-segment LED displays, 14,2mm digit height, 1 digit, LTS-5003 and LTS-6980HR series>LTS 5003 KR rot

Manufacturers

LTS 5003 KR rot

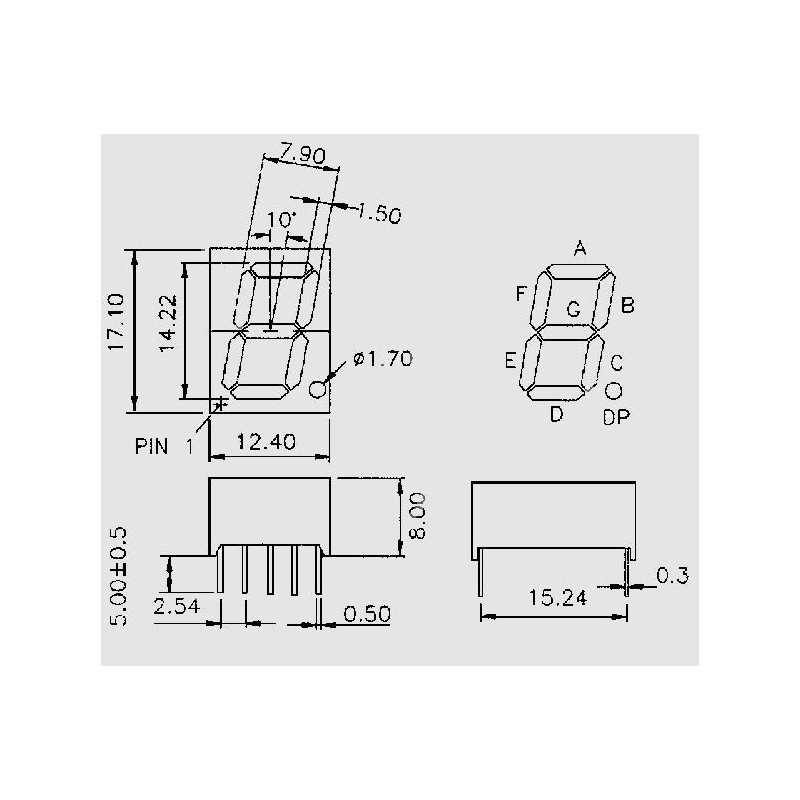

LiteOn LED display series LTS-5003 and LTS-6980HR

  • 7-segment LED displays
  • with a digit height of 14,22mm
  • common cathode
  • dimensions: 17,1x12,4mm

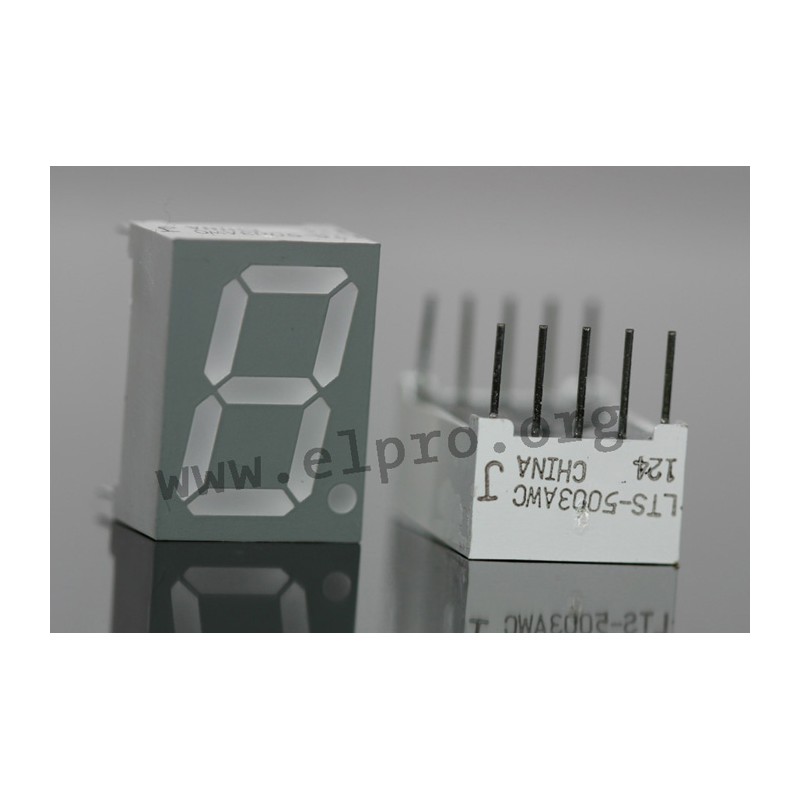

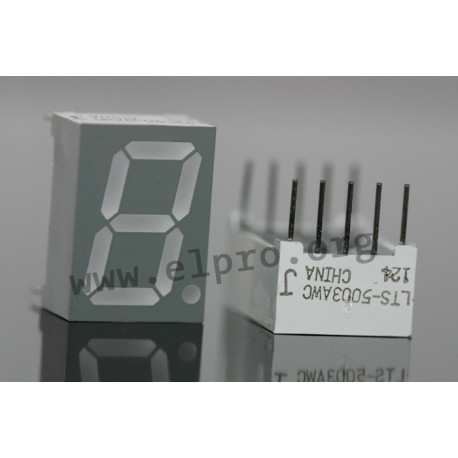

LTS 5003 KR rot (red)

LTS 5003 KR rot

12586 LTS 5003 KR rot LTS-5003AWC LTS-5003AWC LiteOn LED display series LTS-5003 and LTS-6980HR . 7-segment LED displays with a digit height of 14,22mm common cathode dimensions: 17,1x12,4mm

Specifications

manufacturer
Manufacturer's name LTS-5003AWC
Colour red
Digit height [mm] 14,2mm
Number of digits 1 digit
Forward current [mA] 1
Wavelength [nm] 660
Luminous intensity [µcd] 0,7
Data Sheet

Unit price

0,439 €

Stock: 3208
Further delivery:
CW 45/2024

Minimum order quantity 1 to 8 units or multiples of 40 plus 0 to 8 .
