> Semiconductors>Rectifiers>3-Phase power bridge rectifiers>Littelfuse 3-phase bridge rectifiers, 28 to 175A, VUO series>VUO 80-16 NO1

Manufacturers

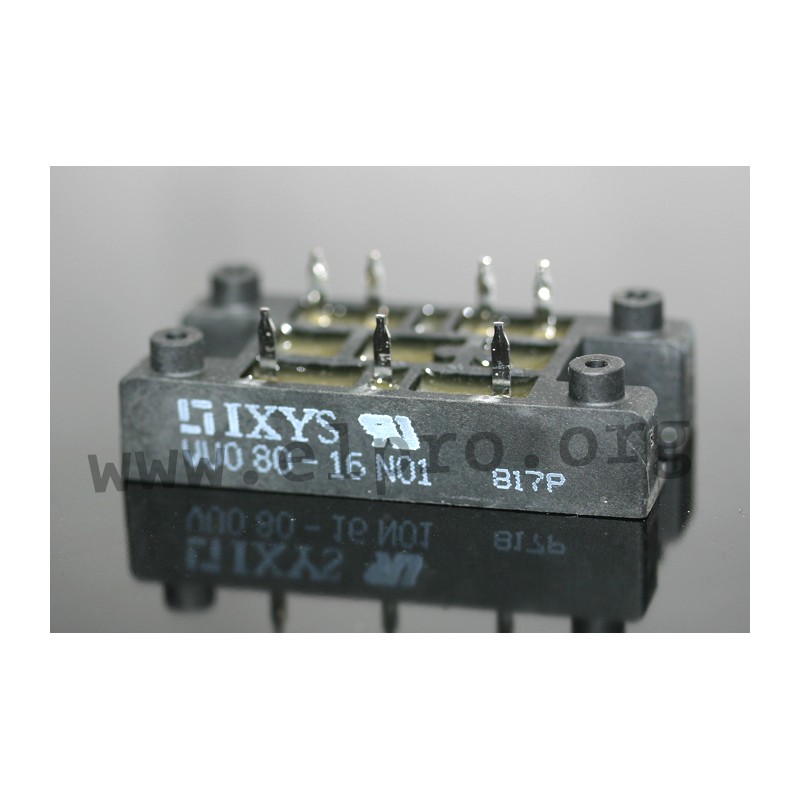

VUO 80-16 NO1

3-phase power bridge rectifiers 15 to 175A

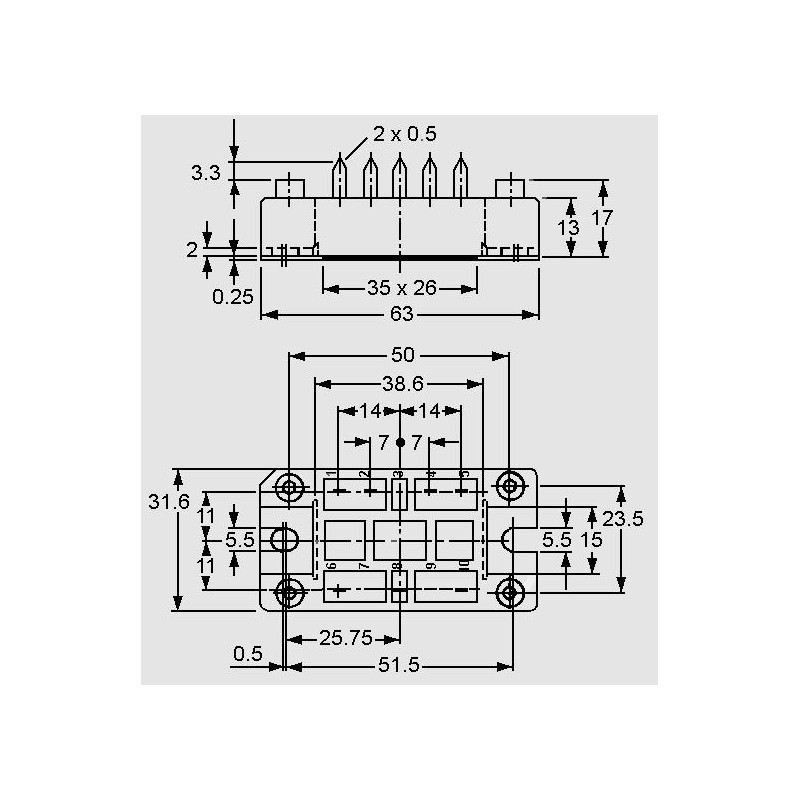

• VUO 16-16 NO1 and VUO 80-16 NO1: V1-PACK-housing
• operating temperature range: -40...+150°C
• isolation voltage min. 3000VRMS

VUO 80-16 NO1

VUO 80-16 NO1

25819 VUO 80-16 NO1 VUO80-16NO1 VUO80-16NO1 3-phase power bridge rectifiers 15 to 175A. • VUO 16-16 NO1 and VUO 80-16 NO1: V1-PACK-housing• operating temperature range: -40...+150°C• isolation voltage min. 3000VRMS

Specifications

manufacturer
Manufacturer's name VUO80-16NO1
Case 3-phase...
(Max.) peak recurrent reverse voltage [V] 1600
Forward voltage [V] 1,5
(Max.) average forward (rectified) current [A] 82
Reverse current [µA] 300
(Max.) RMS voltage [V] 1700
Data Sheet

Unit price

25,19 €

Stock: 0
Further delivery:
CW 10/2026

Minimum order quantity 24 units or
multiples of 24.
