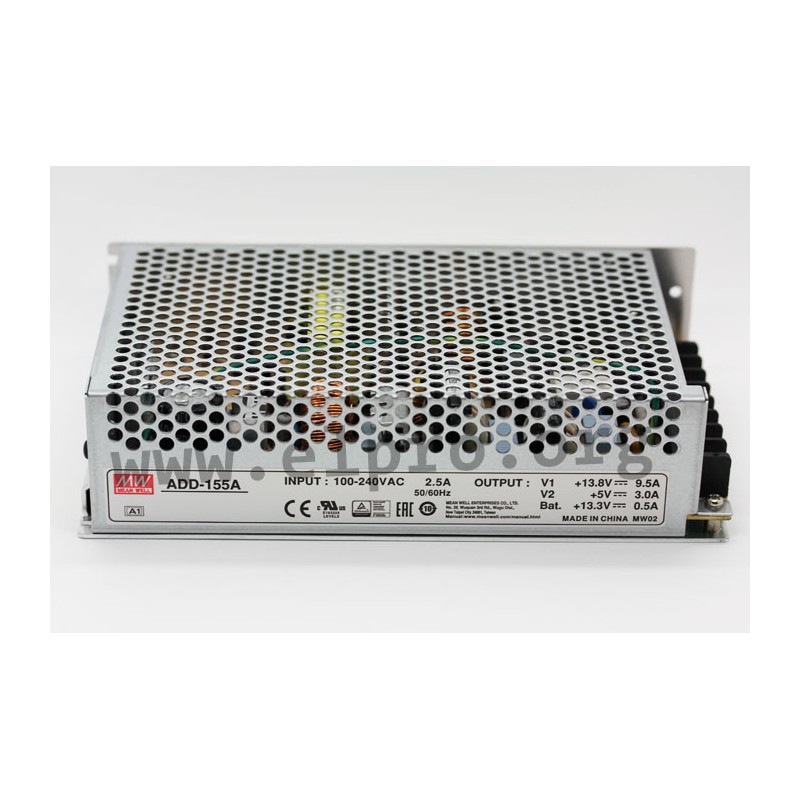

ADD-155A

Mean Well battery charger series ADD-155

Switching power supplies in an enclosed housing with 155W, a universal input, screw terminals, a battery charger and a dual output. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL60950-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADD-155A and ADD-155B.

  • dual output
  • output: 152,75W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 23A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 1000g

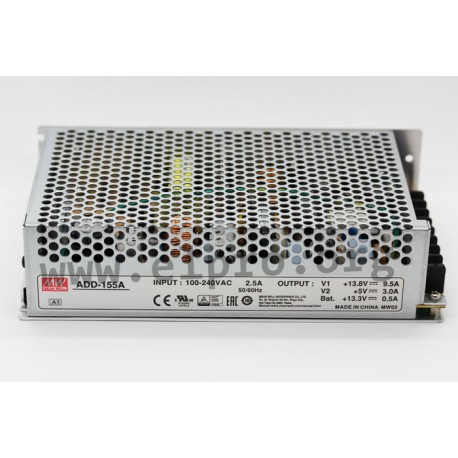

ADD-155A, Mean Well battery chargers, 155W, UPS function, dual output, ADD-155 series

ADD-155A

135765 ADD-155A ADD-155A 4711232760421 Mean Well battery charger series ADD-155. Switching power supplies in an enclosed housing with 155W, a universal input, screw terminals, a battery charger and a dual output. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL60950-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADD-155A and ADD-155B. dual output output: 152,75W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 23A leakage current: &lt;1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 1000g

Specifications

manufacturer
Manufacturer's name ADD-155A
GTIN 4711232760421
Output voltage [V] 13,8/5
Efficiency [%] 78
Output current range [A] 0...10,5/0...3
Output voltage tolerance: [%] ±2/±3
Output power [W] 152,75
Output voltage adjustment [V] 12...14,5V (CH1)
Ripple [mVp-p] 150/100
Data Sheet

Unit price

61,79 €

Volume discounts

Quantity Unit price
50 + 59,79 €

Stock: 253
Further delivery:
CW 33/2024
