Mean Well battery charger series ADD-155

Switching power supplies in an enclosed housing with 155W, a universal input, screw terminals, a battery charger and a dual output. These devices have a built-in active PFC function and are protected agains...

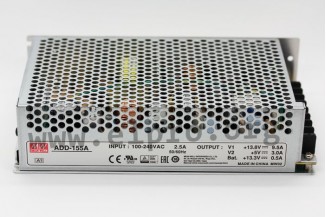

Mean Well battery charger series ADD-155

Switching power supplies in an enclosed housing with 155W, a universal input, screw terminals, a battery charger and a dual output. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL60950-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADD-155A and ADD-155B.

  • dual output
  • output: 152,75W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 23A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 1000g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    ADD-155A, Mean Well battery chargers, 155W, UPS function, dual output, ADD-155 series
    61,79 €
    135765 ADD-155A ADD-155A
    61,79 €
    Quantity Unit price
    50 + 59,79 €

    More
    Stock: 253
  • Mean Well
    ADD-155B, Mean Well battery chargers, 155W, UPS function, dual output, ADD-155 series
    73,49 €
    244530 ADD-155B ADD-155B
    73,49 €

    More
    Stock: 0
