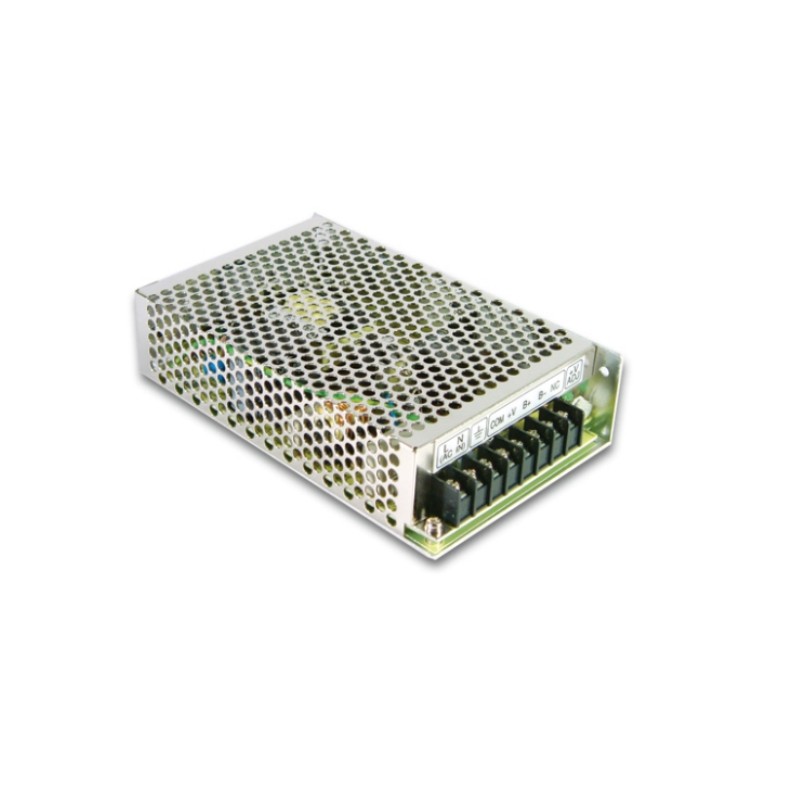

ADS-5524

Mean Well power supply series ADS-55

Switching power supplies in an enclosed housing with 55W, a universal input and screw terminals. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADS-5512 and ADS-5524.

  • single output
  • output: 51 to 58W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 570g

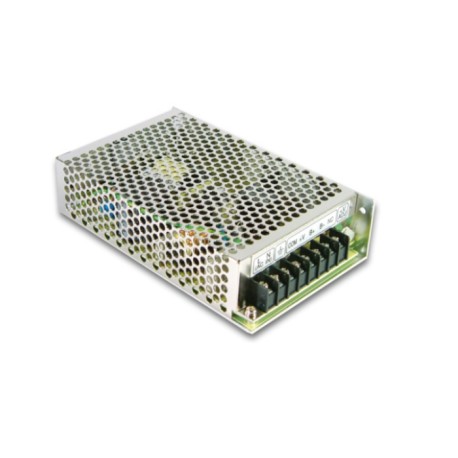

ADS-5524, Mean Well switching power supplies, 55W, UPS function, ADS-55 series

ADS-5524

244529 ADS-5524 ADS-5524 4711232760193 Mean Well power supply series ADS-55. Switching power supplies in an enclosed housing with 55W, a universal input and screw terminals. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADS-5512 and ADS-5524. single output output: 51 to 58W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 40A leakage current: &lt;1mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 570g

Specifications

manufacturer
Manufacturer's name ADS-5524
GTIN 4711232760193
Output voltage [V] 24/5
Efficiency [%] 79
Output current [A] 2,5/4
Output voltage tolerance: [%] 1/3
Output power [W] 58
Output voltage adjustment [V] 21,6...26,4
Ripple [mVp-p] 100
Data Sheet

Unit price

36,19 €

Stock: 0
Further delivery:
CW 33/2024

Minimum order quantity 24 units or
multiples of 24.
