Mean Well power supply series ADS-55

Switching power supplies in an enclosed housing with 55W, a universal input and screw terminals. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as shor...

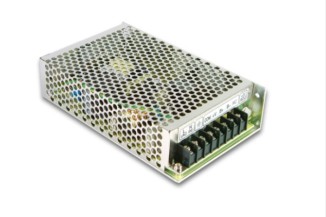

Mean Well power supply series ADS-55

Switching power supplies in an enclosed housing with 55W, a universal input and screw terminals. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADS-5512 and ADS-5524.

  • single output
  • output: 51 to 58W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 570g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    ADS-5512, Mean Well switching power supplies, 55W, UPS function, ADS-55 series
    36,19 €
    244528 ADS-5512 ADS-5512
    36,19 €

    More
    Stock: 0
  • Mean Well
    ADS-5524, Mean Well switching power supplies, 55W, UPS function, ADS-55 series
    36,19 €
    244529 ADS-5524 ADS-5524
    36,19 €

    More
    Stock: 0
